Yamaha / YXZ 1000R / Dash Panels Installation Instructions For Models: YXZ 1000R (2016-2018), YXZ 1000R SE (2016-2018), YXZ 1000R SS SE (2017-2018), YXZ 1000R SS (2017-2018)

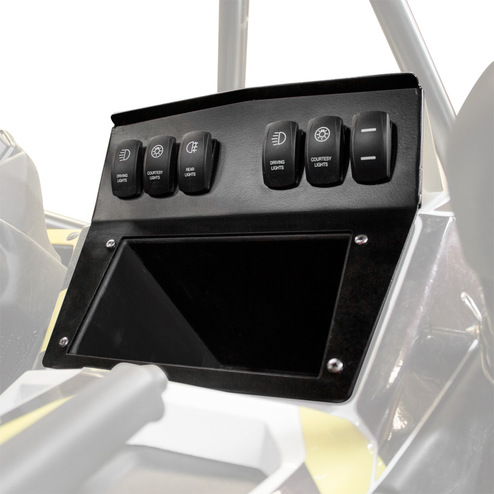

1. Install all the Switches/Gauges you plan on using with the Dash Panel. Using your discretion, you may need to drill holes in the plastic to route the wires.(See Figure #1)
2. Slide the Dash Panel over top the stock cargo compartment.

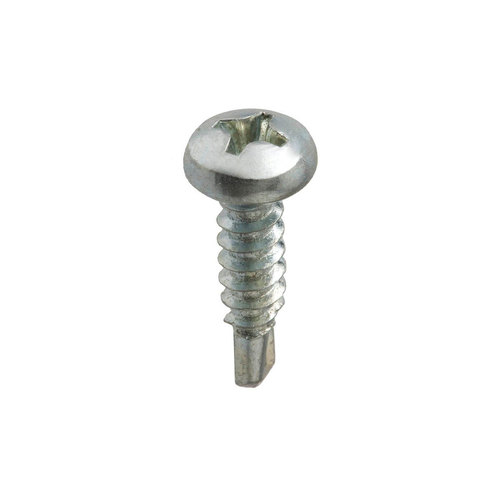

3. Align and install the 4 supplied screws in the hole locations.(See Figure #2)
