Yamaha / Wolverine X2 / Defender Rear Bumper Installation Instructions For Models: Wolverine X2 (2019-2025)

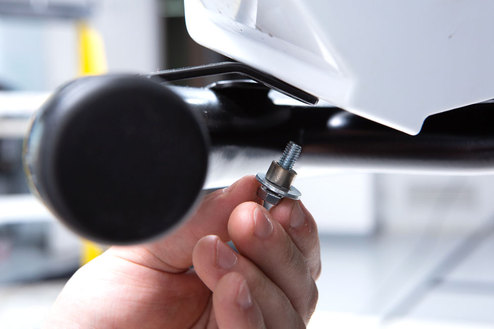

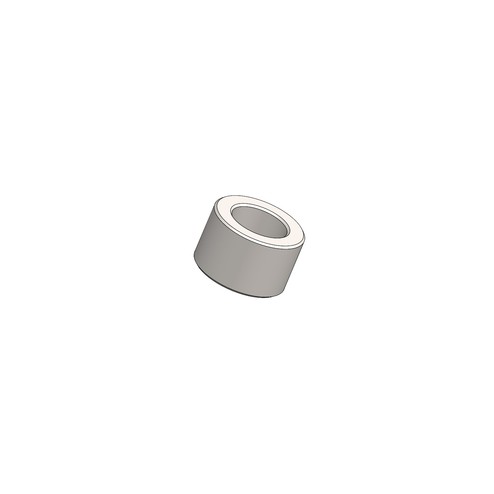

1. Begin installation of the bumper at the outer mounting tabs using the provided (2) M6x1.0x20 Hex Bolts, (2) ¼” Flat Washers, and (2) Wolverine Bumper Spacers as shown. Do not tighten.(See Figure #1)

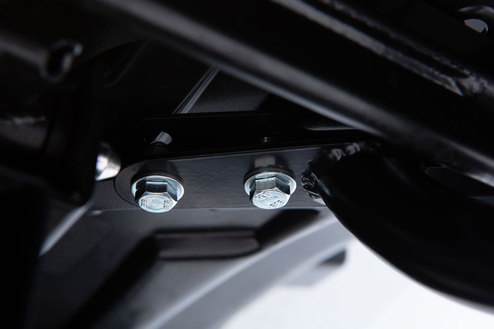

2. Install the provided (4) M8x1.25x20 Hex Bolts, (4) M8x1.25 Nylock Nuts, and (8) ¼’ Flat Washers through the inner mounting tabs to the bottom of the vehicle’s bed.(See Figure #2)

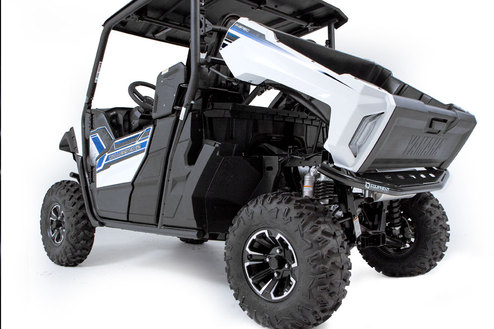

3. Check for proper alignment and clearance when bed is in tilted position. Tighten all hardware.(See Figure #3)

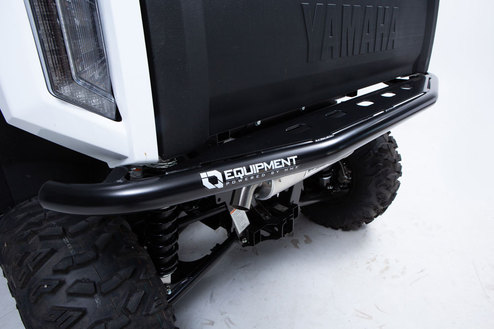

(See Figure #4)
