Yamaha Raptor 700 Slip-On 06-14 Installation Instructions

Removal

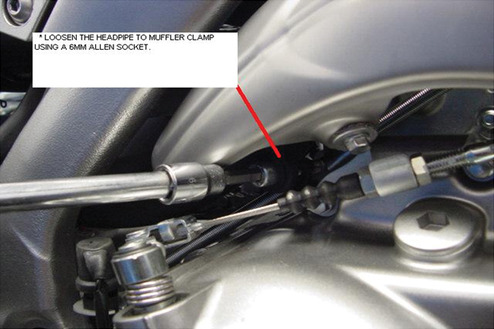

1. With a 6mm Allen Socket, loosen the Silencer-to-Head Pipe Joint Clamp. (See Figure #1)

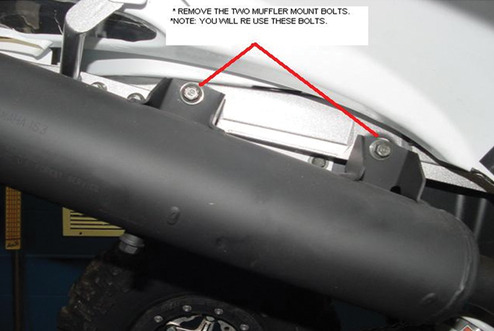

2. Remove the 2 Silencer-To-Frame Mounting Bolts and the Silencer. (See Figure #2)

3. Save the bolts, you will re-use them in the installation.

Installation

1. Install the Short S-Bend Connector Pipe onto the Head Pipe.

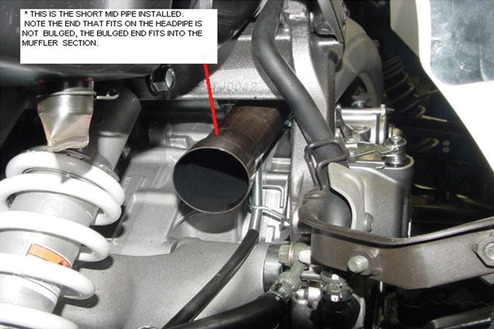

The smaller end fits onto the head, the bigger bulged end will fit into the Exhaust.(See Figure #3)

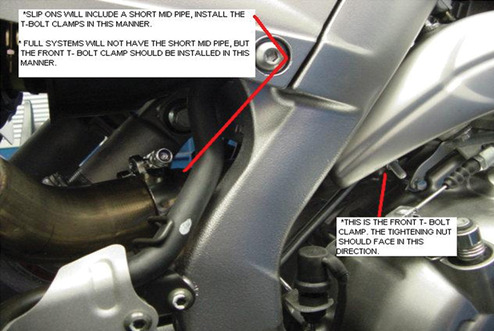

2. Slide the Clamps onto the Short S-bend Connector Pipe. Do not Tighten.(See Figure #4)

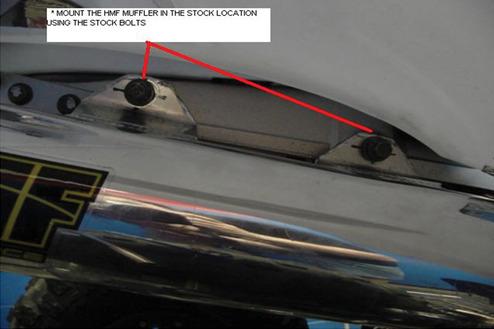

3. Slip the Silencer section onto the Short S-Bend Connector Pipe and mount it to the Stock Silencer Mount Location using the Stock Bolts. (See Figure #5)

Tighten in this order:

1. Silencer-To-Frame Mount Bolts.

2. Silencer-To-Short Connector S-Bend Clamp.

3. Short S-Bend Connector-To-Head Pipe Clamp.

Make Sure that the Silencer-Outlet-Tip Allen screws are tight.
