Yamaha / Raptor 700 / Grab Bar / 16-24 Installation Instructions For Models: Raptor 700 (2015-2025)

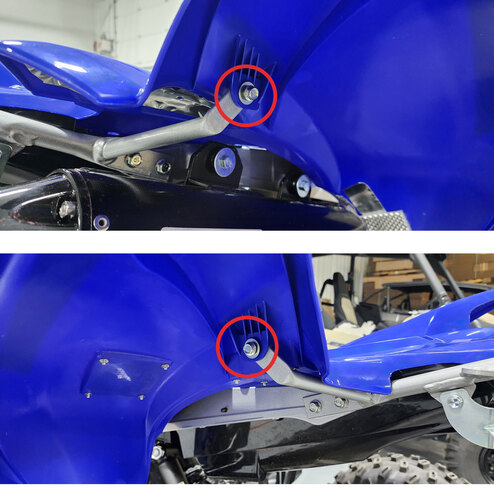

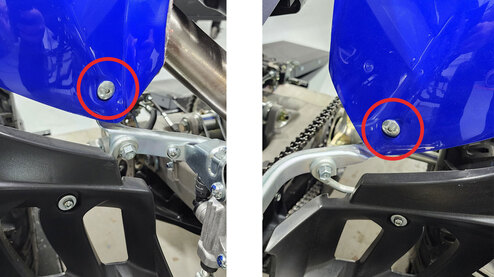

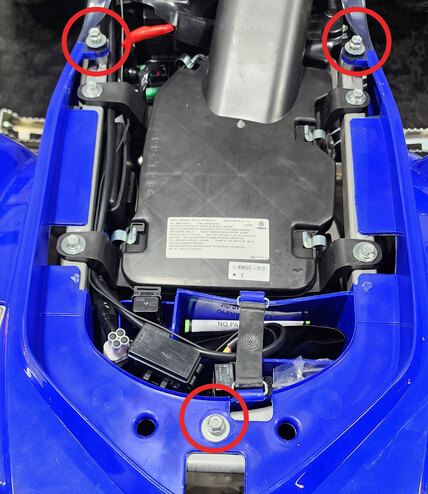

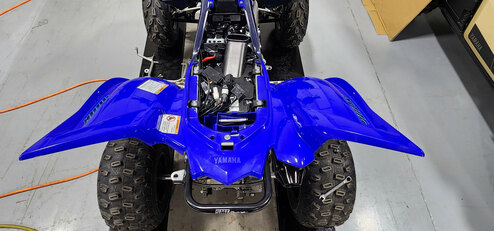

1. Remove Seat and remove (5) 10mm hex head bolts, (2) allen head nuts and bolts holding the Rear Fairing in place. (Photos 1-3)(See Figure #1)
(See Figure #2)
(See Figure #3)

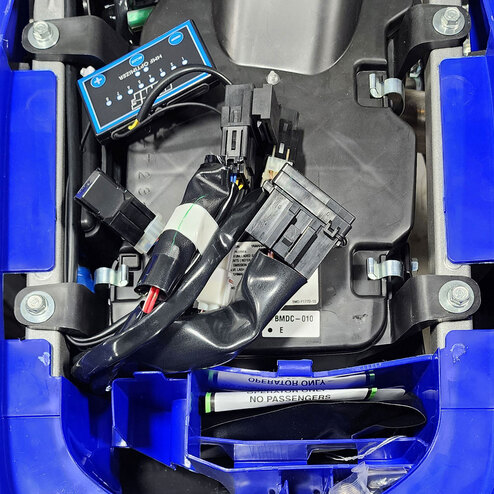

2. Remove Fuse Boxes and Sensors from Retention clips and lay them over the airbox cover.(See Figure #4)

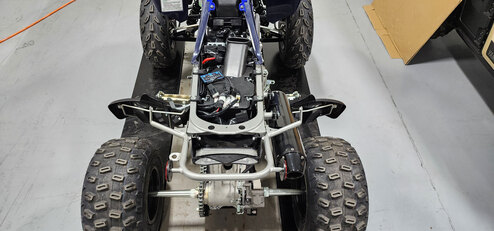

3. Remove Rear Fairing Plastics.(See Figure #5)

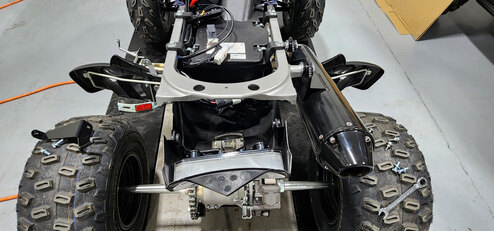

4. Slide Undertail off of the studs on the factory grab bar. (See Figure #6)

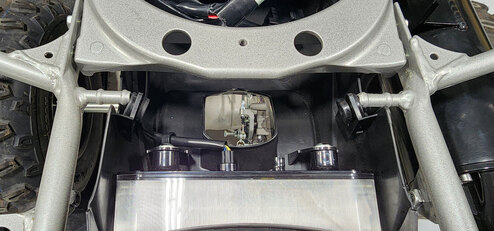

5. Remove the Factory Grab Bar.(See Figure #7)

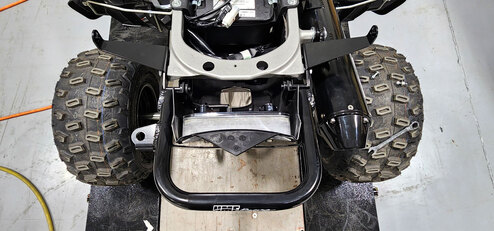

6. Using provided (4) M8-1.25x25 Flange Bolts, install supplied Brackets with grommet studs towards the rear of the vehicle and install New HMF Grab Bar.(See Figure #8)
7. Reinstall Rear Fairing using factory hardware. (See Figure #9)
8. Reinstall Fuse Boxes and Sensors then make any final adjustments and tighten all hardware.
