HMF Racing Yamaha Raptor 700 Full System 06-14 Installation Instructions

For Models: Raptor 700 (2006-2014)

Removal

- Figure 1

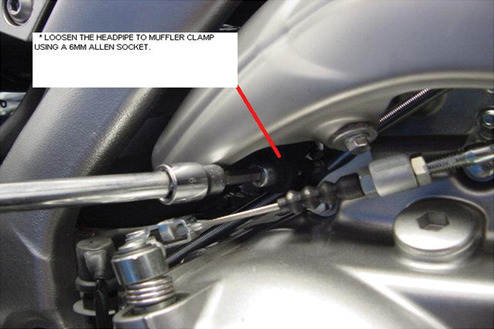

1. With a 6mm Allen Socket, loosen the Silencer-to-Head Pipe Joint Clamp. (See Figure #1)

- Figure 2

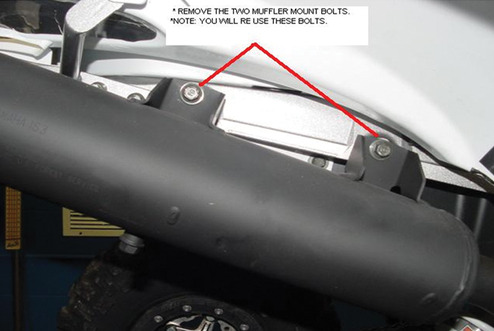

2. Remove the 2 Silencer-To-Frame Mounting Bolts and the Silencer. (See Figure #2)

- Figure 3

3. Save the bolts, you will re-use them in the installation.(See Figure #3)

- Figure 4

Installation

- Figure 5

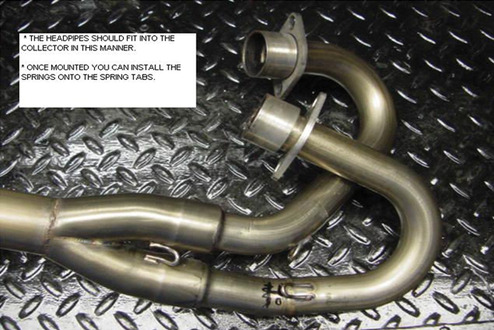

1. Make sure the Header Pipes properly.(See Figure #4)

- Figure 6

2. Making sure the Cylinder-to-Header Gaskets are in the exhaust ports, slide the HMF Header into the ports and snug the Stock Nuts.  Do not tighten.

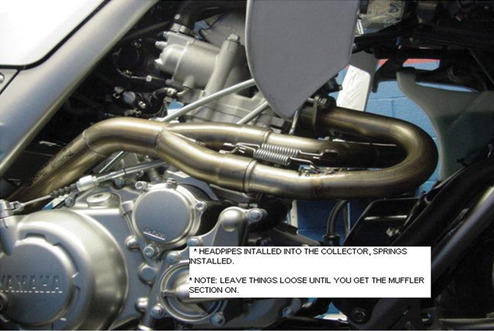

3. Install the 2 springs onto the Spring Tabs.  (See Figure #5)

- Figure 7

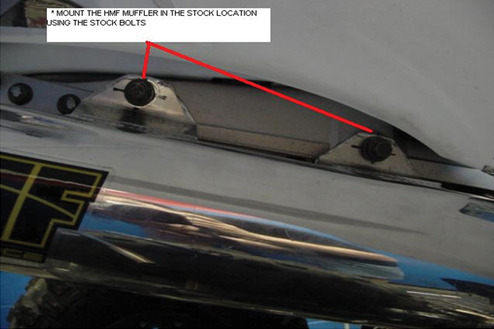

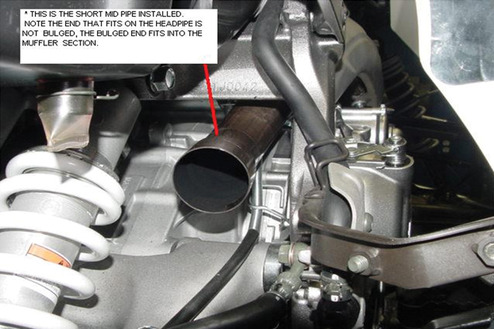

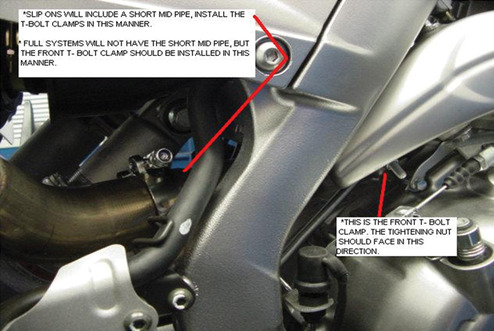

4. Slide the provided Clamp onto the inlet of the Silencer S-Bend (not the way it is facing in the picture) and slide the assembly onto the Head Pipe then mount the Silencer to the Stock Location using the Stock Mounting Bolts.  Do not tighten.

Tighten in this order:

  • Silencer-To-Frame Mount Bolts.
  • Silencer-To-Short Connector S-Bend Clamp.
  • Short S-Bend Connector-To-Head Pipe Clamp.

Make Sure that the Silencer-Outlet-Tip Allen screws are tight.
