Yamaha / Raptor 660 / Defender Front Bumper Installation Instructions

For Models: Raptor 660 (2001-2005)

Installation

1. Remove the original Front Bumper.

2. Position the HMF Defender Front Bumper on the vehicle and install the supplied Hex Bolts and Washers. Do Not Tighten.(See Figure #1)

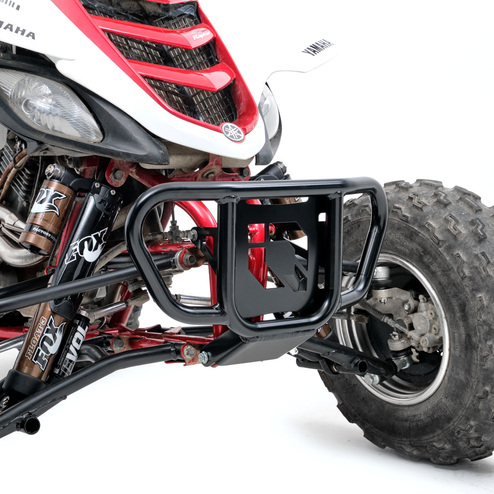

- Figure 1

3. Check the HMF Front Bumper for alignment to ensure it's straight and tighten all hardware.(See Figure #2)

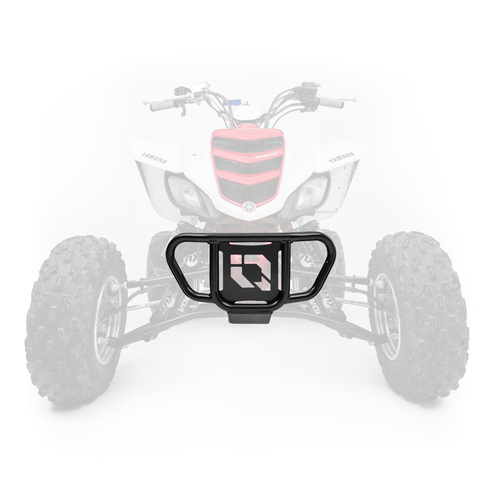

- Figure 2
