Yamaha Grizzly 550 & 700 Slip-On Titan Series Installation Instructions

Removal

1. Using a piece of wire or a spring puller, remove the head pipe-to-Silencer Springs.

2. Remove the Silencer-to-Frame Bolt.  (You will reuse the original bolt.)

3. Make sure the Original Silencer-to-Head Pipe Gasket is in place on the Head Pipe Outlet, you will reuse it.  Replace if necessary.

Installation

1. Using the Stock Bolt/Washer, mount the HMF Slip On in the same location as the Stock Silencer.

2. If the silencer is too close to the bumper, use the supplied M8x50 bolt, 1/2" spacer and (2) 5/16" fender washers to mount the silencer.  This will space it out from the frame enough to clear the bumper.

3. Using a spring puller or piece of wire install the original Silencer-to-Head Pipe Springs.

4. Mount the supplied heatsheild on the rear plastic that’s closest to the exhaust inlet.

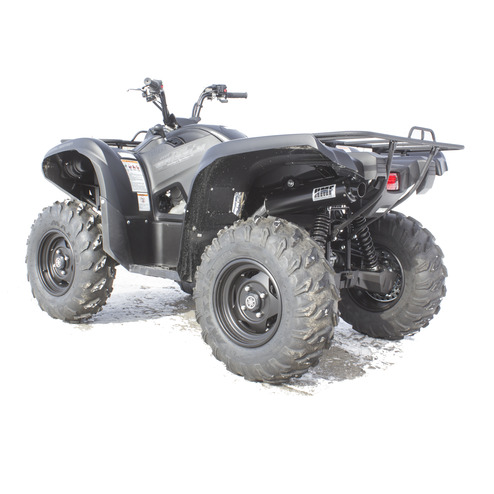

5. It may be necessary to loosen header at cylinder to get correct alignment.(See Figure #1)
