Polaris / Scrambler XP 850 / Light Mount Installation Instructions

Removal

1. Remove the (2) M8 Bolts holding the Front Plastic.

Installation

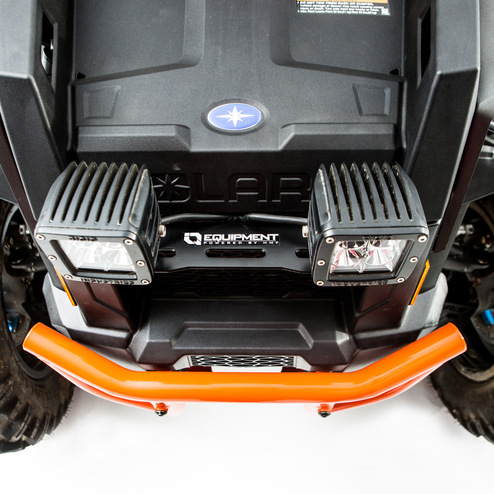

1. Install the (2) Stock Bolts through the Light Bracket.(See Figure #1)

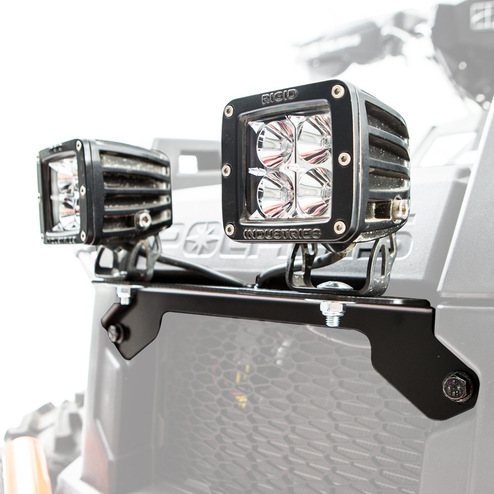

2. Place the (2) Supplied 1/4" Washers on the Backside of the Bracket, so they sandwich between the plastics and the bracket.(See Figure #2)

3. Center the LED Light Mount and Tighten.
