Polaris / Scrambler XP 850 / Defender Rear Bumper Installation Instructions

For Models: Scrambler XP 850 (2012-2016)

Removal

1. Remove the (4) Bolts holding the Rear Grab Bar bumper.

2. Remove the (2) Nuts on Lower A-Arms. Keep this hardware, you will use it for the IQ Equipment Bumper installation.

1. Install the Bumper to the Bolts on the Lower A-Arms and Grab Bar Mounting Point.(See Figure #1)

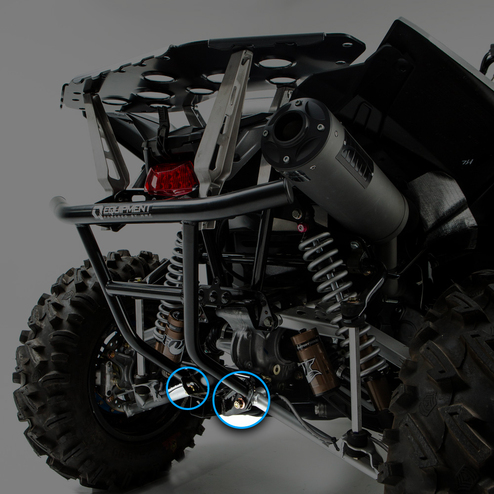

- Figure 1

2. Tighten the Nuts on the Lower A-Arms(See Figure #2)

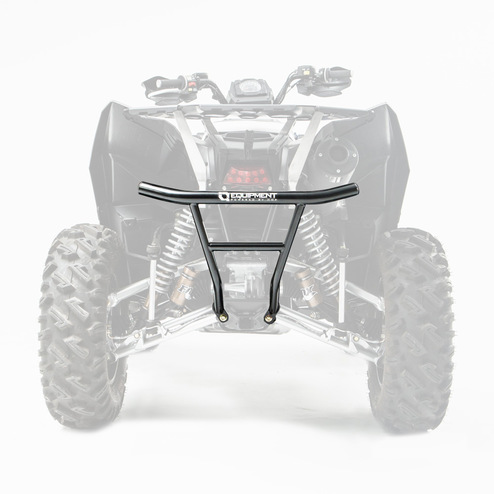

- Figure 2

3. Center and Level the bumper and tighten with the (4) Remaining Bolts.(See Figure #3)

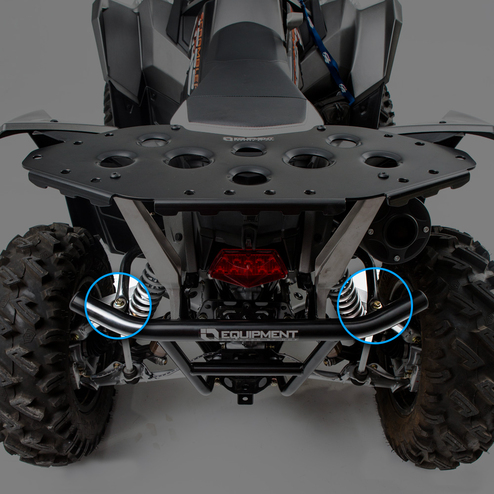

- Figure 3
