Polaris / RZR XP 4 Turbo / Apex Intrusion Full Shield Installation Instructions

For Models: RZR XP 4 Turbo (2016-2018)

Installation

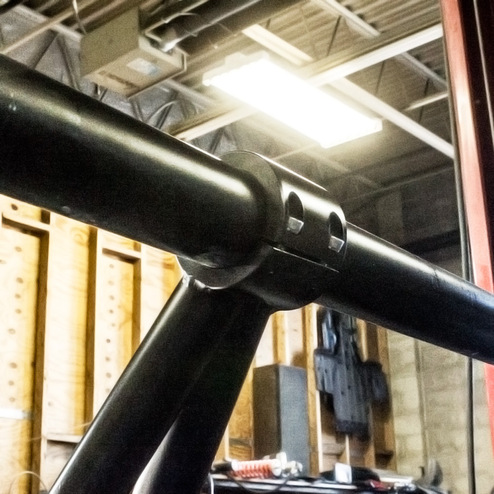

- Figure 1

1. Slide the Apex Windshield Bar into position on the Cage. (See Figure #1)

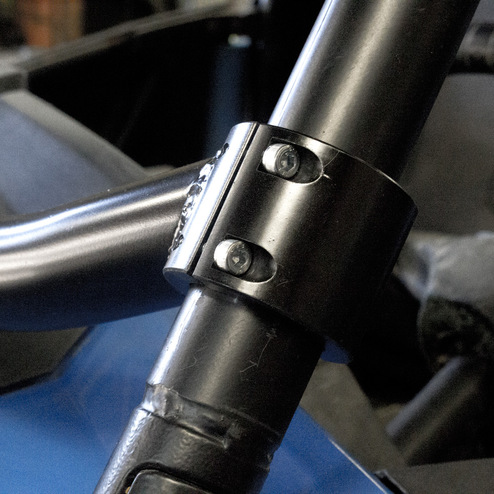

- Figure 2

2. Install Cage Clamps using the M6x20 Bolts, and tighten in criss-cross pattern
