Polaris / RZR XP 1000 / Rear Bumper / 24 Installation Instructions For Models: RZR XP 1000 (2024-2025)

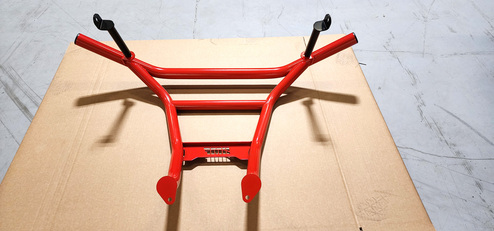

1. Pre-install Support Tubes onto HMF Rear Bumper using supplied (2) M8-1.25x20, (2) 1/4” Flat Washers (See Figure #1)

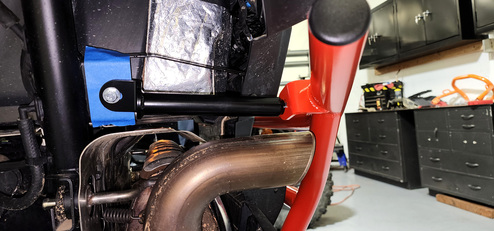

2. Using (2) M8-1.25x25, (4) 1/4" Flat Washers and (2) m8-1.25 Nylock Nuts loosely hang the bumper on the machine using the upper mounting points. (See Figure #2)

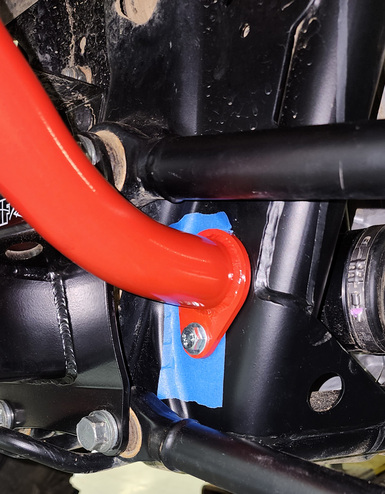

3. Using (2) M8-1.25x25, (4) 1/4” Flat Washers and (2) M8-1.25 Nylock Nuts Loosely secure lower mounting points.(See Figure #3)

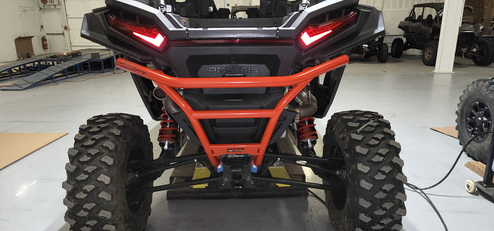

4. With all hardware and components in place, adjust and align the bumper and tighten all hardware.(See Figure #4)
