Polaris / RZR XP 1000 / Defender HD / Front Bumper Installation Instructions For Models: RZR XP 1000 (2014-2018)

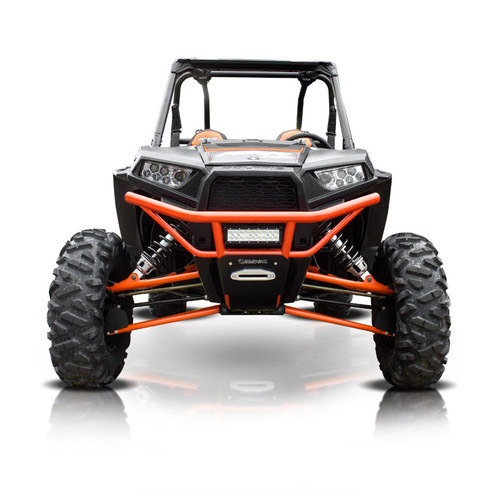

1. Using the (5) supplied M8 hex bolts, (10) washers, and (5) nyloc nuts, install the front bumper.

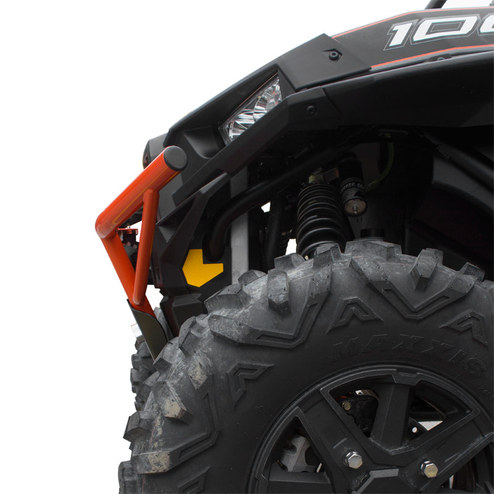

2. Carefully center the bumper, then tighten the mounting hardware.(See Figure #1)
3. Use the (4) supplied M6 button head bolts with (4) washers to install the skid plate.
4. Speed nuts are preinstalled on the skid plate mounting tabs.(See Figure #2)
