Polaris / RZR RS1 / Radiator Scoops Installation Instructions For Models: RZR RS1 (2018-2022)

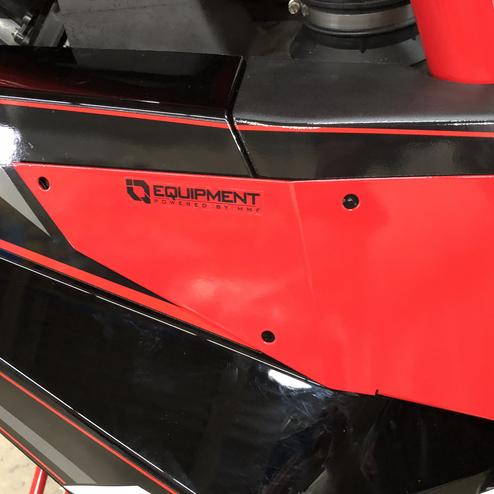

1. Line the Radiator Scoops up parallel about 1/2" Off of the Sticker Line and the same height.(See Figure #1)

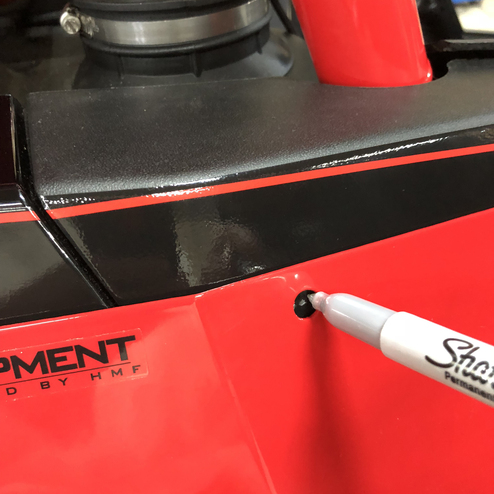

2. Mark (5) Holes on the Plastic Body for drilling.(See Figure #2)

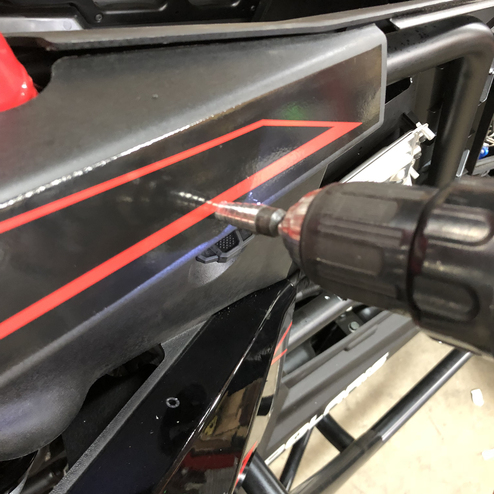

3. Using a 5/16" Drill Bit (*Unibit), drill out the (5) Holes on each side of the plastic. *Note: We recommend using a Unibit instead of a drill bit to avoid damage to your plastic panels.(See Figure #3)

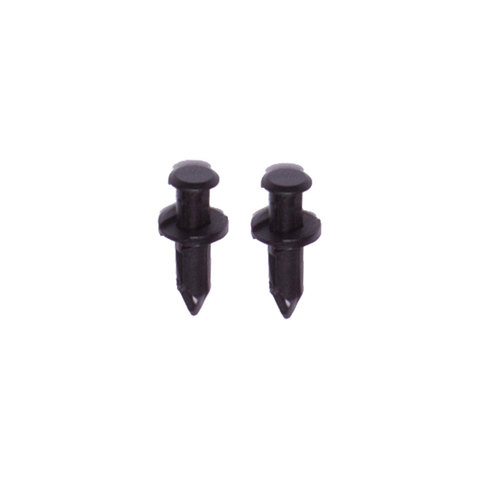

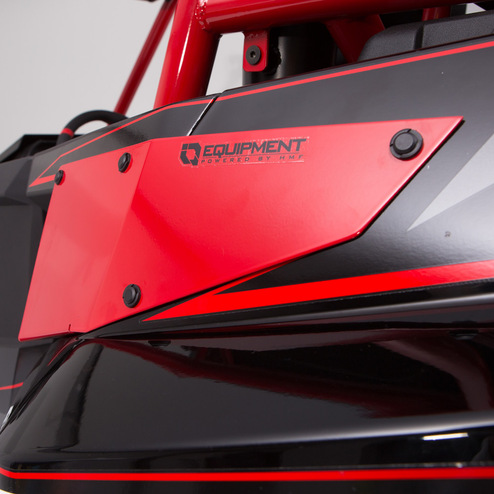

4. Using the supplied Push Rivets, install the Radiator Scoops on the vehicle.(See Figure #4)

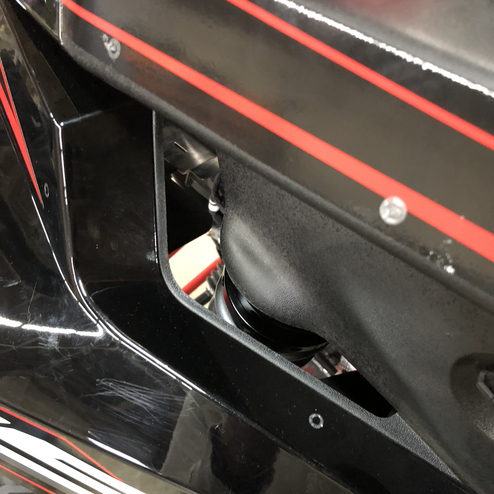

5. (Optional) Trim the plastic behind to Radiator Scoop to produce more air flow to the radiator.(See Figure #5)
