Polaris / RZR Pro XP / HD 2.0 Front Bumper Installation Instructions For Models: RZR Pro XP (2020-2025)
!!! WARNING !!! Before working on your machine, make sure it is parked on a level surface with the transmission in park and/or the parking brake engaged.
1. Remove the following:

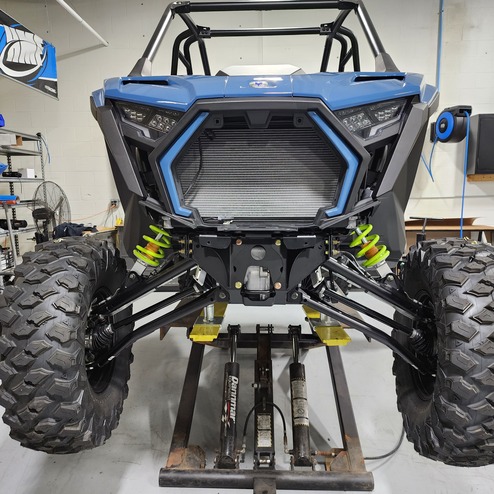

2. If the vehicle came with a bumper hoop remove the original front bumper hoop and support brackets. (see pic 1)(See Figure #1)

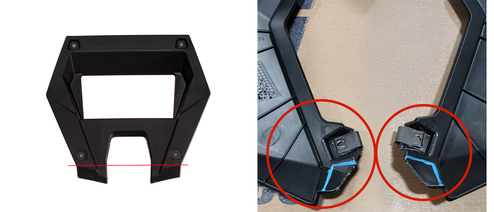

3. Trim the lower center fascia panels as shown in the image below. Cut off the section below the red line on the inner fascia. Cut along the blue lines on the outer fascia. (see pic 2)(See Figure #2)

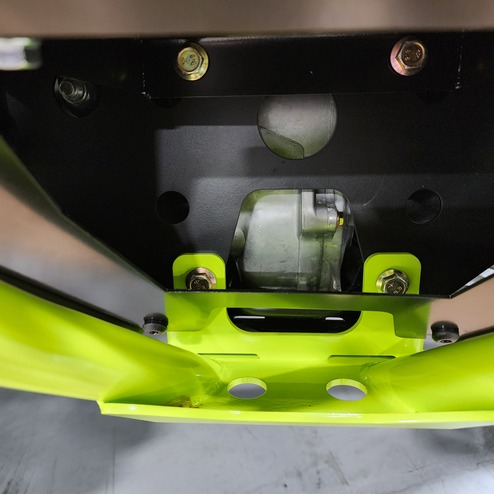

1. Install the provided Front Bumper Mid Plate using the provided (2) M10-1.5x25 Hex Bolts, (2) 3/8" Flat Washers where the origal front bumper hoop mounted.

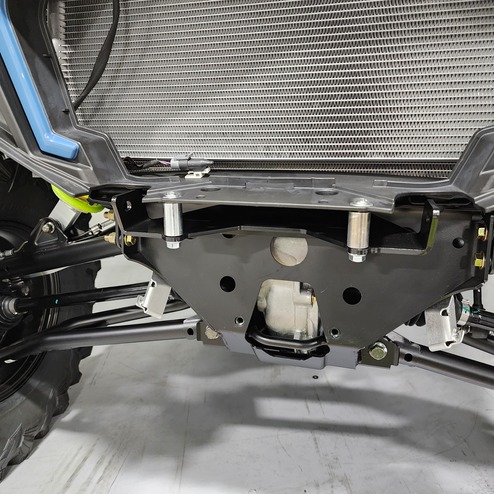

2. Using supplied (2) M8-1.25x50 Buttonhead bolts, (4) 3/8" Flat Washers, (2) M33 Aluminum Spacers, (2) M8 -1.25 Nylock Nuts Secure the grill surround to the Front Bumper Mid Plate. (see pic3)(See Figure #3)

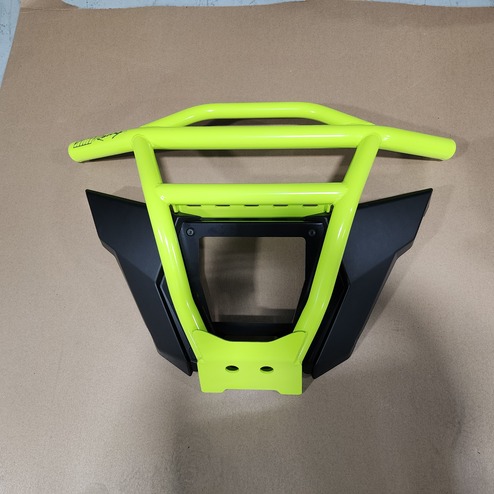

3. Re assemble inner and outer fascia and place the assembly into the new HMF HD 2.0 Front bumper. (see pic4)(See Figure #4)

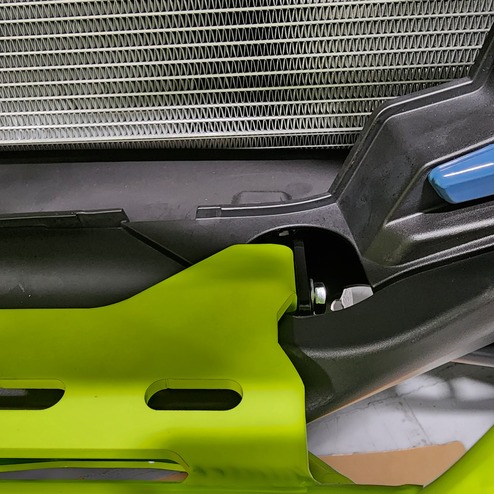

4. Using supplied (2) M10-1.5x25 Hex Bolts, (2) 3/8" Flat Washers Hang the HMF HD 2.0 Front Bumper loosely from the lower mounts. (see pic5)(See Figure #5)
5. Loosely secure the HMF HD 2.0Front Bumper to the Front Bumper Mid Plate using the supplied (2) M10-1.5x25 Allen Bolts (4) 3/8" Flat Washers (2) M10-1.5 Nylock Nuts. (see pic6)(See Figure #6)

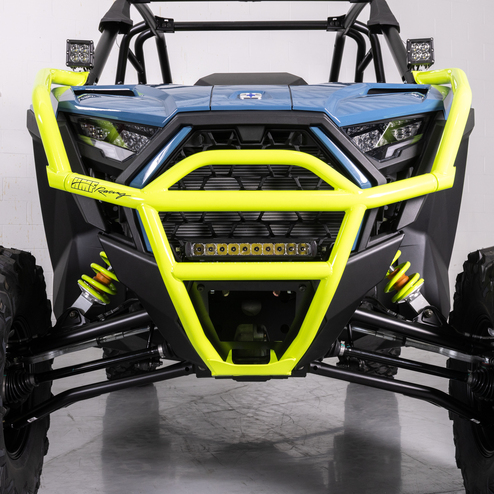

6. With all components in place resecure front fascia assembly to the mounting points using the factory torx bolts, make any final adjustments and tighten all hardware. (see pic7)(See Figure #7)
