Polaris / RZR Pro S / HD Hitch Receiver Installation Instructions For Models: RZR Pro S (2025-2025)
1. Support rear of the vehicle on jack or stands. (do not raise tires off the ground)

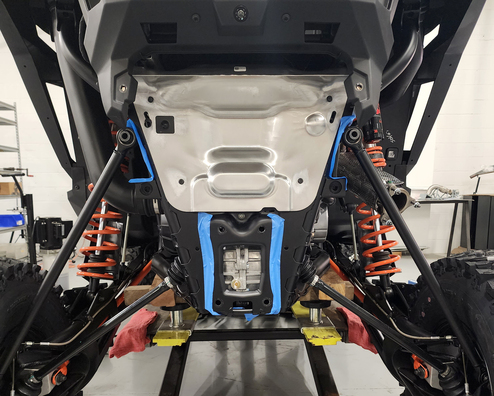

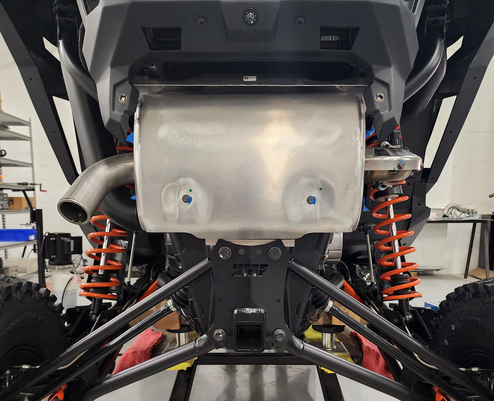

2. Remove rear fascia plastics. (Optional- remove muffler assembly to ease installation) (See Figure #1)
3. Remove the lower heat shield from factory radius arm plate.

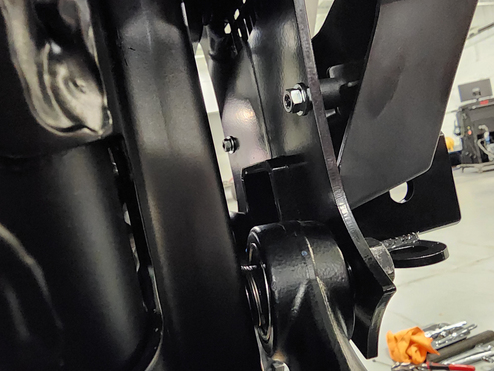

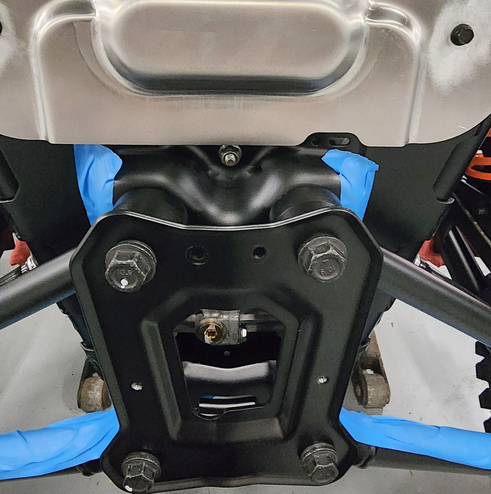

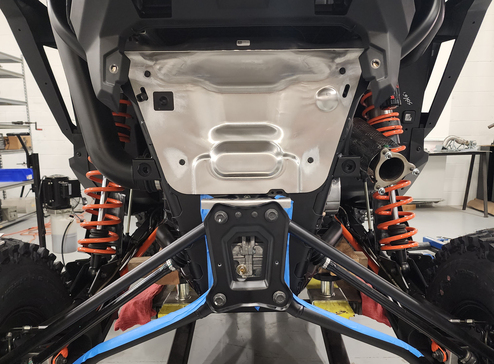

3. Loosen and remove the inner radius arm hardware and radius arm plate.(See Figure #2)

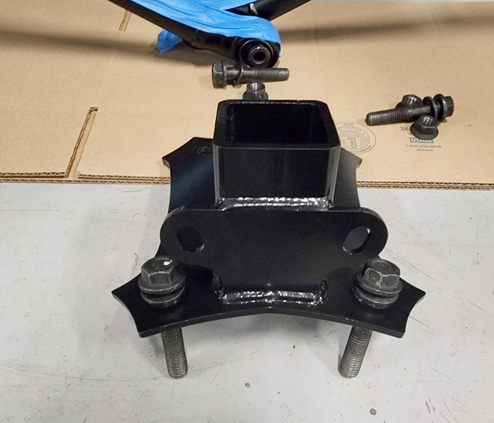

4. Pre install original lower radius arm bolts in Hitch Plate, insert bolts through lower radius arms and place on vehicle.(See Figure #3)
(See Figure #4)

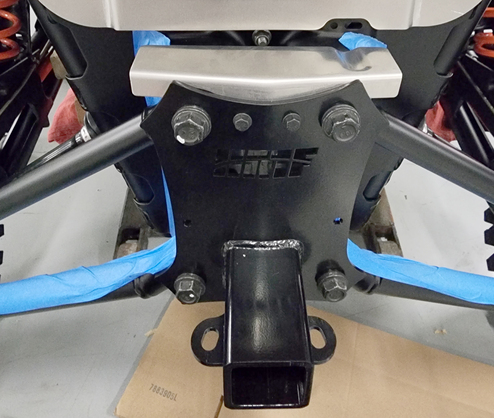

5. Reinstall upper radius arms and tighten all radius arm hardware.(See Figure #5)

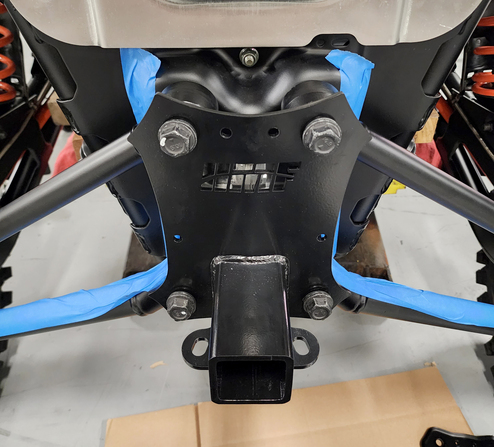

6. Reinstall radius arm plate heat shield.(See Figure #6)
7. Reinstall muffler assembly.(See Figure #7)

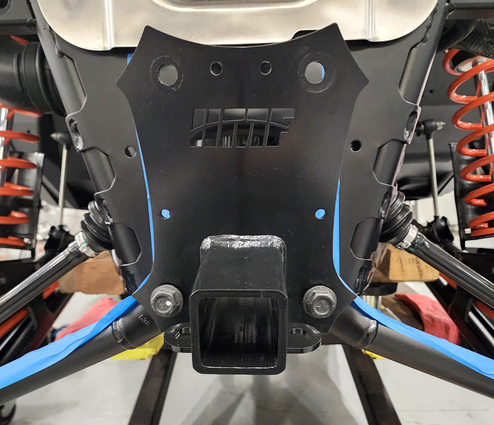

8. Reinstall rear fascia plastics using stock hardware with included M6 locknuts and #10 washers on the back side of the hitch plate. (See Figure #8)

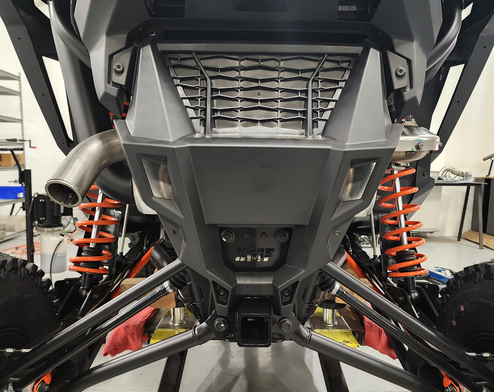

(See Figure #9)
