Polaris / RZR 900 Trail / Defender LT / Front Bumper Installation Instructions For Models: RZR 900 Trail (2015-2020)
1. Remove the Winch Cover from the Front Fascia.

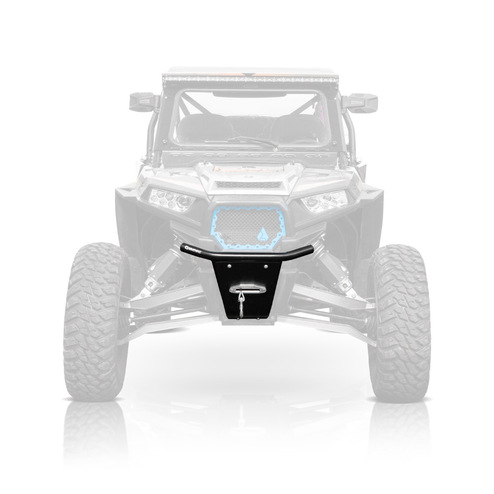

1. Using the (5) supplied M8 hex bolts, (10) washers, and (5) nyloc nuts, install the IQ Defender Front Bumper. (See Figure #1)

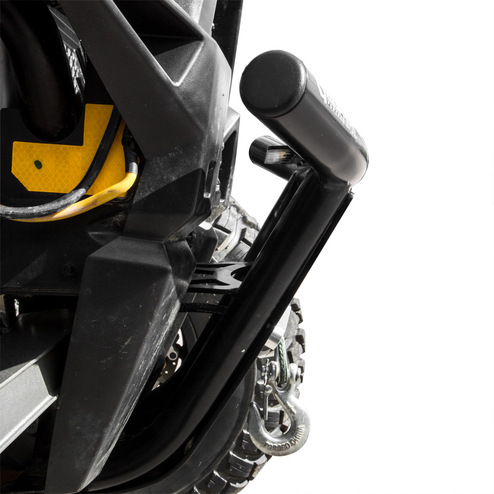

2. Carefully center the bumper, then tighten the mounting hardware.(See Figure #2)

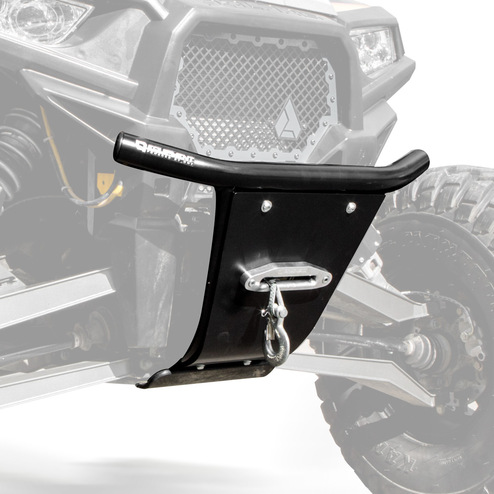

3. Use the (4) supplied M6 button head bolts with (4) washers to install the skid plate.(See Figure #3)
4. Speed nuts are preinstalled on the skid plate mounting tabs.
