Polaris RZR 800 Dual Slip-On Installation Instructions

Removal

1. Make sure the machine is on level ground and completely cooled down.

2. Loosen the Stock Clamp that holds the Silencer and Head Pipe together.

3. Remove the J-Shaped pipe.  Leave the first 2 sections of the Stock Exhaust on these because they will be reused.

4. Once the J-Pipe is removed, you will be able to remove the Silencer.

Installation

1. Take the 4 Bolts out that hold the bed on.

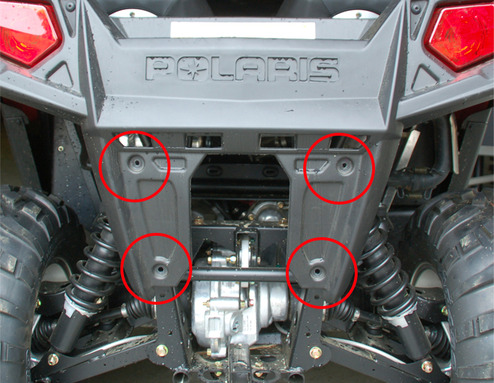

2. Remove the Back Bolts so the bed can be raised. (See Figure #1)

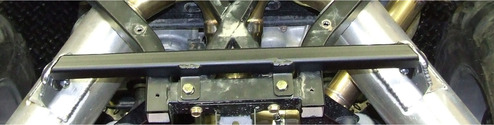

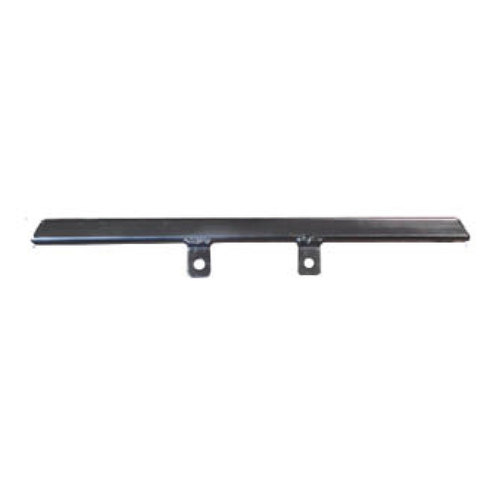

3. Slide these 2 Bolts out of the frame and install the supplied Bracket with the tabs facing the rear. (See Figure #2)

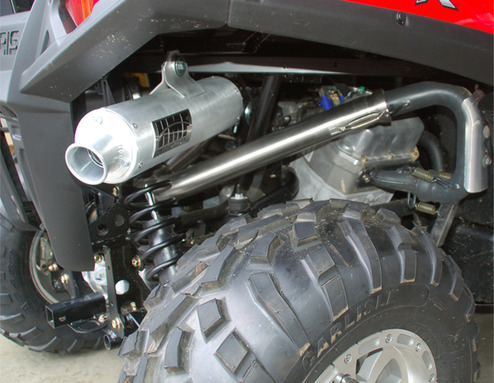

4. Install the Long L-Shaped Pipe using the supplied Springs. (See Figure #3)

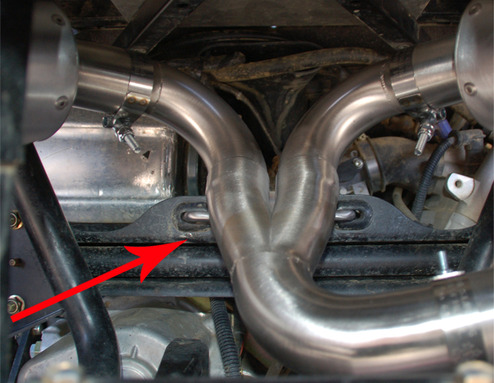

5. Slide the Clamp on, then slide the Collector into the bulge, and the Hangers into the Rubber Mounts. (See Figure #4)

6. Slide on the Silencers and Clamps.

7. Bolt on the Silencers using the supplied washers on each side of our Rubber Mount Bracket.

8. Align the Silencer completely before tightening.
