Polaris Ranger 900 Slip-On 13-15 Installation Instructions

Removal

1. Place the bed in full dump position.

2. Using a piece of electrical wire or a spring puller, remove the 2 springs at the Head-pipe-to-Silencer Joint.

3. Remove the 3 rubber exhaust hangers and exhaust silencer, being careful not to lose the Head Pipe-to-Silencer Gasket.

Installation

1. Inspect the Head Pipe-to-Silencer Gasket for wear or damage.  Replace if necessary.  (See Figure #1)

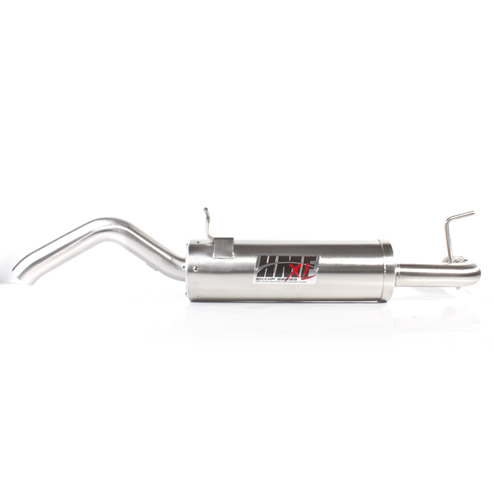

2. Position the Slip-on and tail pipe assembly in the original location.

3. Install the original rubber exhaust hangers on the silencer.

4. Using a piece of electrical wire or a spring puller, install 2 original springs at Head-pipe-to-Silencer Joint.

5. Using supplied hardware, mount the tailpipe exhaust hanger to the bracket.  (See Figure #2)

6. Inspect all areas around the exhaust for proper alignment and clearance.  Adjust if necessary.
