Polaris Predator Slip-On Installation Instructions

Removal

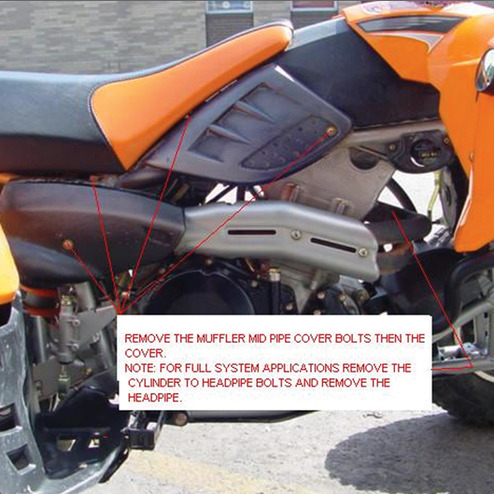

1. Remove the Seat and the Right Side Plastic Cover.  (See Figure #1)

2. Remove the Silencer-to-Frame Bolts and remove the Silencer.

Installation

1. Slide the Clamp onto the HMF Inlet.

2. Inspect the original gasket on the head pipe for wear or damage.  Replace if necessary.

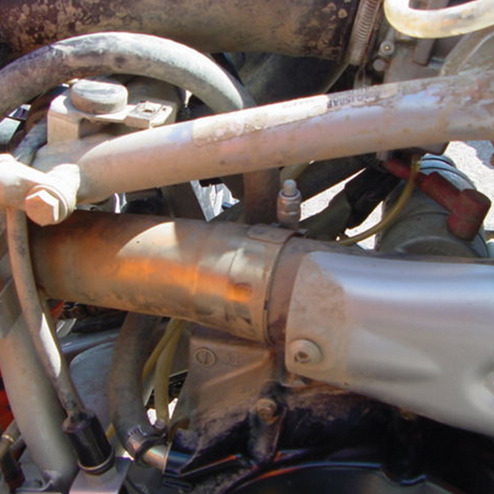

3. Slide the HMF Exhaust onto the Stock Head Pipe.  (See Figure #2)

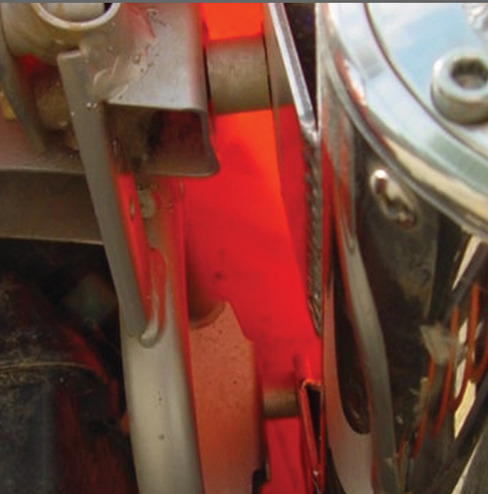

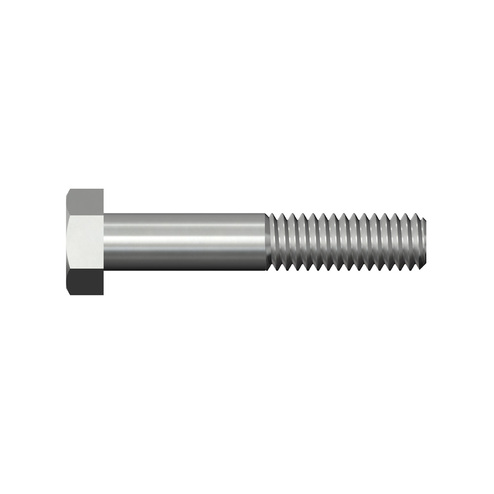

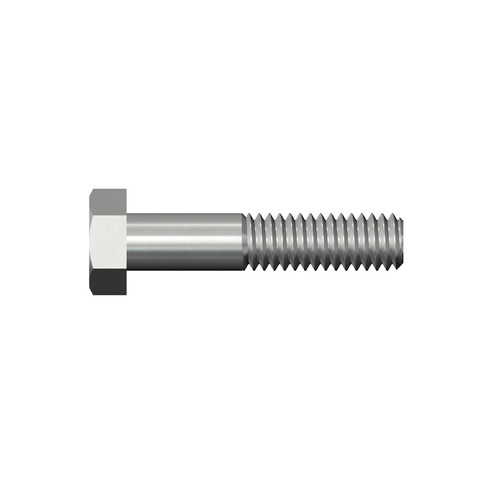

4. Using the supplied hardware, mount the HMF Silencer in the stock location in this manner:  Supplied Bolt:  Washer:  Silencer Mount:  Spacer:  Frame

Tighten in this order:

a. Silencer Mount-to-Frame Bolts

b. Clamp

5. Re-install the side Plastic Cover and Seat.
