Polaris Outlaw 525: IRS Slip-On Installation Instructions

Removal

1. Remove the Spring at the top rear of the Silencer.

2. Loosen the Clamp at the Silencer-to-Head Pipe Joint.

3. Pull and rotate the Silencer counter-clockwise in a corkscrew motion.

4. Remove the original Gasket from the Head Pipe.

Installation

1. Slide the T-Bolt Clamp onto the Inlet of the Silencer.(See Figure #1)

2. Push and rotate the HMF Silencer clockwise in a corkscrew motion, then make the connection at the Silencer-to-Inlet Joint.

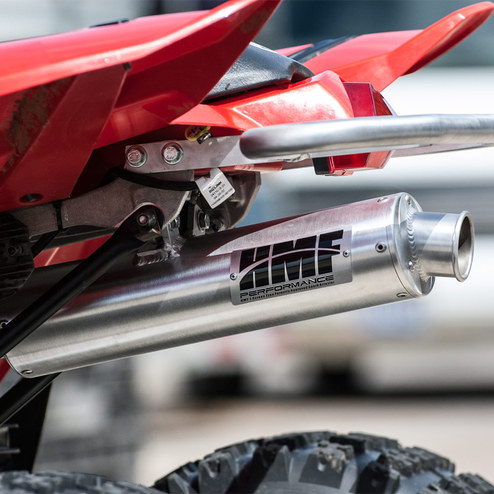

3. Align and center the Silencer and tighten all hardware.(See Figure #2)
