Kawasaki / Teryx & Teryx 4 / Optimizer Installation Instructions For Models: Teryx 4 (2012-2013)
Remove top of center console.

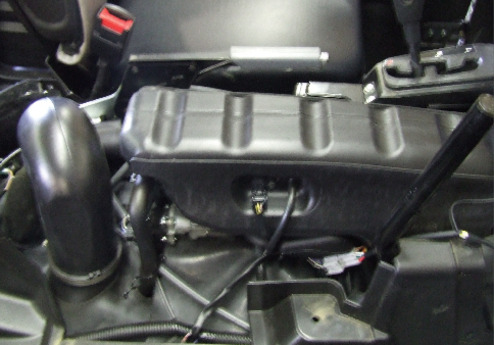

Locate injector connector on the right side next to the passenger seat and unplug.
Plug the Optimizer harness connectors into the injector harness and main wiring harness. (See Figure #1)
Run the ground wire to the stud at the right front of the center console.

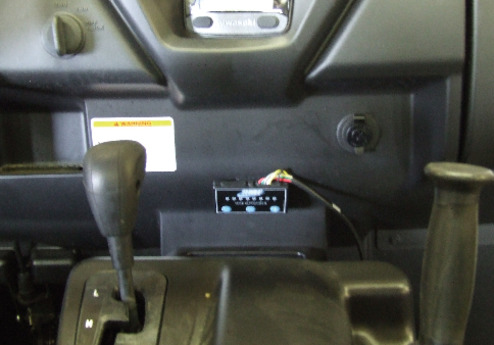

Route the optimizer harness away from any hot or moving parts. You can mount the Optimizer with the supplied Velcro to a safe location. We chose the dash.
