Kawasaki Teryx Slip-On 08-13 Installation Instructions For Models: Teryx (2008-2013)
1. Disconnect the Tail Light Wiring Harness from the dump bed.
2. Remove the dump bed for easy access to the exhaust system. Caution: This step may require a second person as the bed is HEAVY.
3. On Older models, remove the Under Bed Heat Shield.
4. Remove the original Silencer and Gaskets. These gaskets will not be used.
5. Remove the 2 original Exhaust Mounting Brackets from the frame. They will not be used.
1. Using a ¼” or 5/16” drill bit, drill through the frame holes located 3-5/8” forward of the dump bed pivots. This is where your supplied bracket will bolt up.
2. Use the ¼” carriage bolts, washers, and nyloc nuts to install the bracket with the mounting tabs facing the rear of the vehicle.

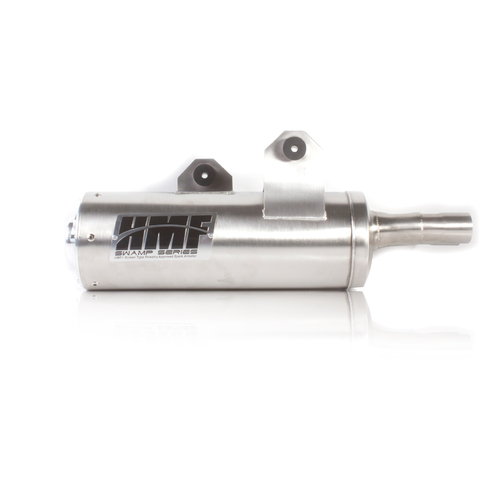

3. Slide the supplied T-bolt clamps over the collector, insert the supplied gaskets into the collector until they are fully seated, and slide the silencer over the head pipes, being careful not to damage the gaskets.
4. Using the supplied hardware, mount the silencer to the frame. Note: Use supplied spacer on front silencer mount.
5. Inspect all areas to ensure proper clearance and adjust as necessary.

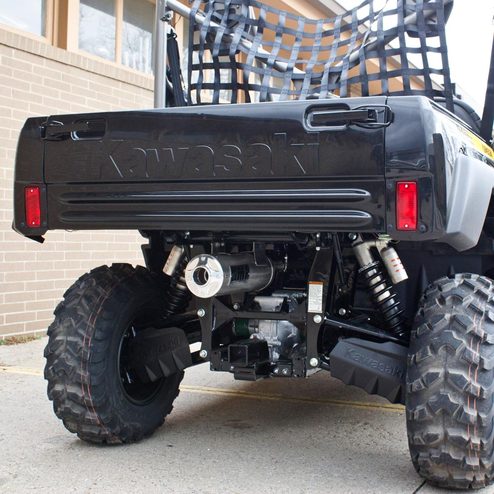

6. Tighten the T bolt clamps and install the dump bed.(See Figure #1)
