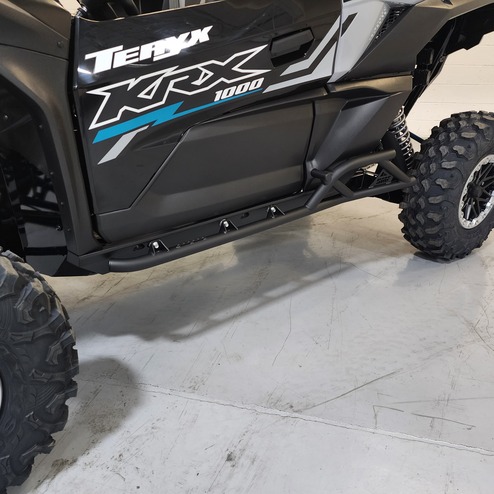

Kawasaki / KRX 1000 / Rock Sliders Installation Instructions For Models: Teryx KRX 1000 (2020-2025)
1. Although not required, it’s recommended to remove the rocker panels to drill the plastics off the vehicle.

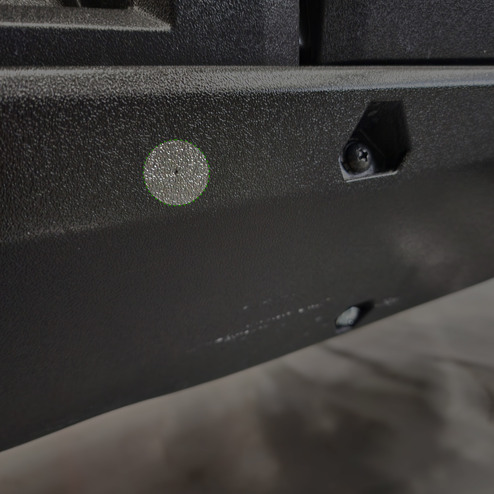

2. using a 1-3/8" step drill bit . drill at the factory marked locations indicated by the small divots in the plastics.(See Figure #1)

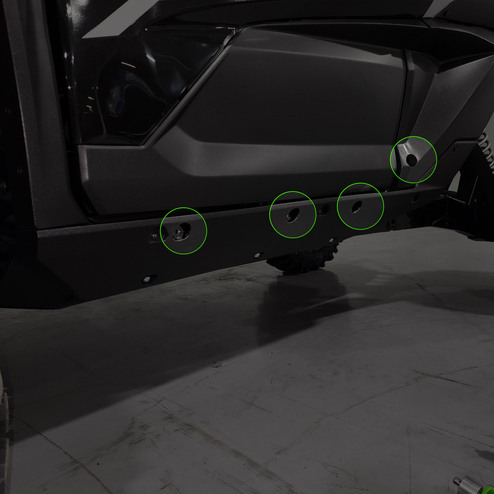

(See Figure #2)

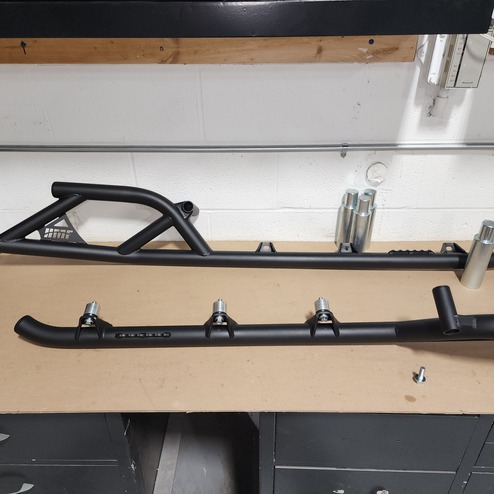

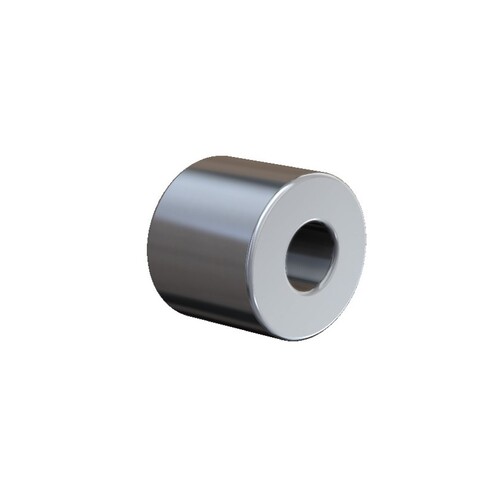

1. Preinstalling the provided 3x M10-1.25x50, 3x 3/8" Flat washers and 3x Aluminum spacers onto the 3 front mounts of the rock slider.

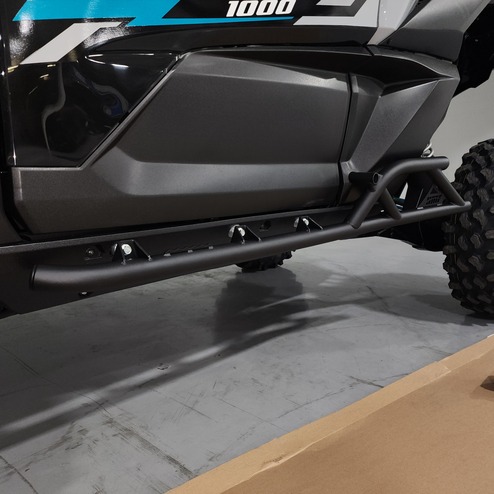

2. Hold the HMF Rockslider in place and start threading the bolts into the factory mounts.

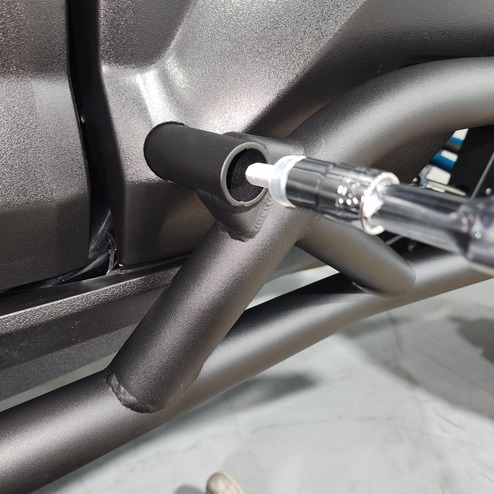

3. Loosely secure the top rear tube mount using the remaining M10-1.25x30 bolts and 3/8" flat washers.
4. Once everything is positioned correctly, make any necessary adjustments and tighten all hardware.

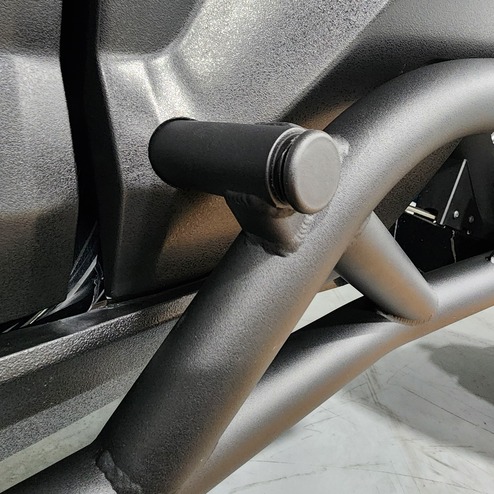

5. Install the provided 1.25" Bumper cap into the top rear mount tube.
(See Figure #3)
6. Repeat these steps for the other side of the vehicle
