Honda / Talon 1000R/X / Rear Cargo Rack Basket Installation Instructions For Models: Talon 1000R/X (2019-2020)

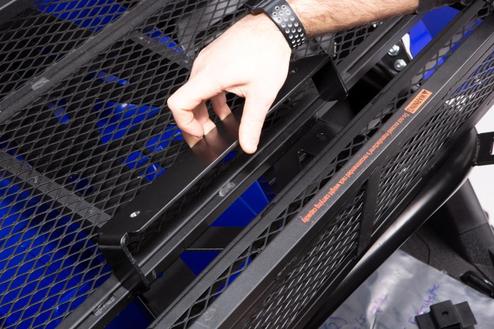

1. Remove the plate from the basket and install the provided Cargo Basket Bracket.(See Figure #1)

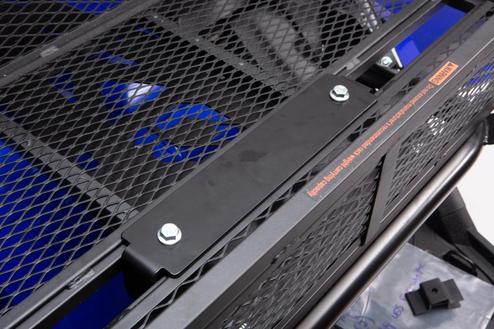

2. Secure the basket to the tire carrier plate using the provided (2) M10x1.5x55 Flanged Head Bolts, (2) 3/8" USS Flat Washers, and (2) M10x1.5 Nylock Nuts. The washers will go on the bottom side of the tire carrier plate. (See Figure #2)
