Honda / Talon 1000 R/X / RS Front Bumper Installation Instructions For Models: Talon 1000R/X (2019-2022)
!!! Warning !!! Before working on your machine, make sure it is parked on a level surface with the transmission in park and/or the parking brake engaged.
1. Remove the (2) bolts on each side holding the front fascia plastics to the factory bumper. (See Figure #1)

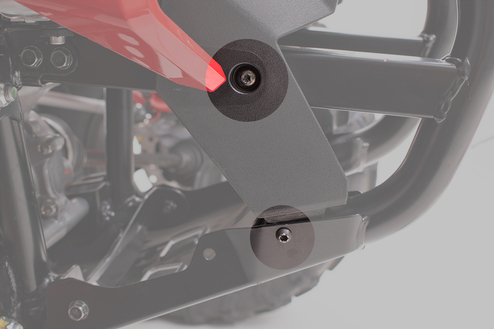

2. Remove the upper (2) factory mounting bolts and (1) lower factory mounting bolt from each side holding the front bumper to the vehicle.(See Figure #2)
3. Carefully remove the factory front bumper.

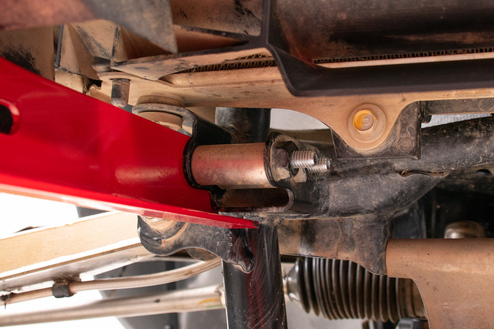

1. Carefully position the iQ front bumper and secure it to the factory lower mounting points using the provided (2) M8-1.25x20 Hex Bolts and (2) ¼” Flat Washers.(See Figure #3)

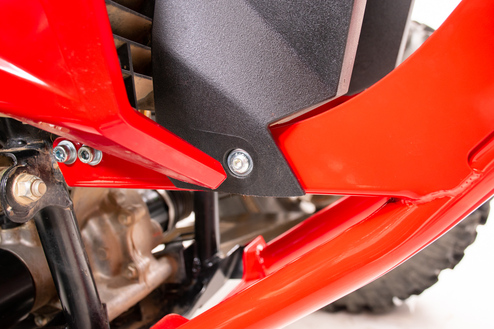

2. Secure the upper mounting points using the provided (4) M8-1.25x65 Allen Head Bolts, (4) 38mm Aluminum Spacers, and (4) ¼” Flat Washers.(See Figure #4)

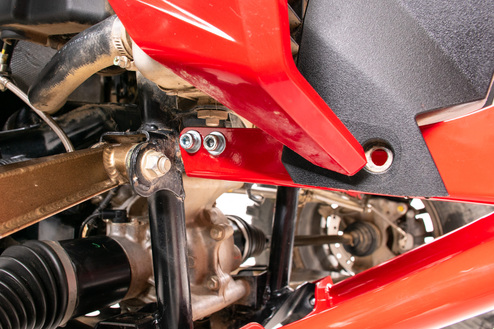

3. The 38mm Aluminum Spacers will go between the factory frame rails as shown below. (See Figure #5)
4. Trim the lower portion of the front fascia as shown and secure to the bumper using the provided (2) M8-1.25x25 Buttonhead Bolts, (4) ¼” Flat Washers, and (2) M8-1.25 Nylock Nuts. (See Figure #6)

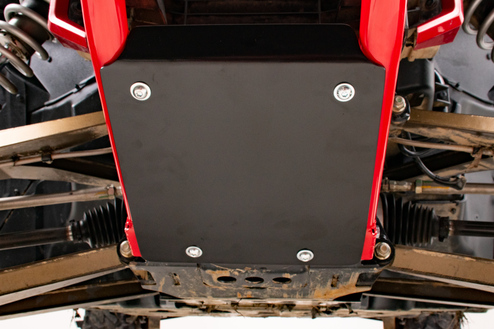

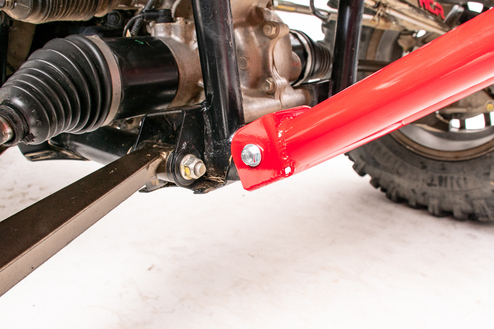

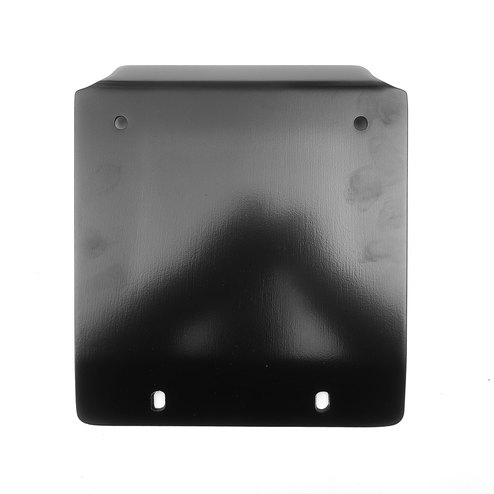

5. Securing the provided skidplate on the bumper using the provided (4) M8-1.25x25 Buttonhead Bolts, (8) ¼” Flat Washers, and (4) M8-1.25 Nylock Nuts. (See Figure #7)

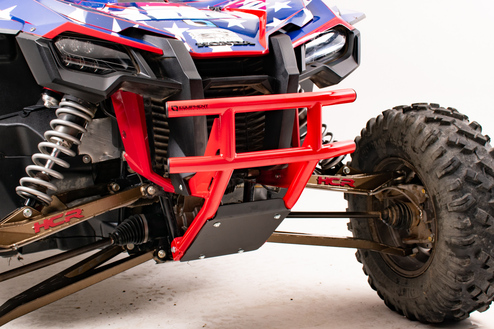

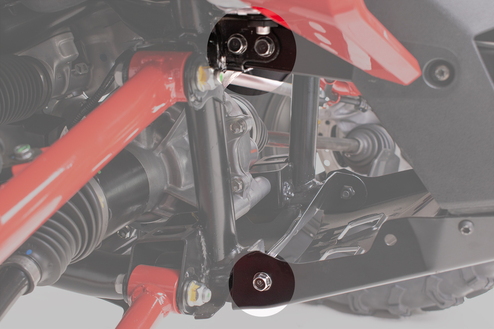

6. Tighten any hardware left loose, and check for proper clearance of all components.(See Figure #8)
