Honda / Foreman 500 / Optimizer / 12-13 Installation Instructions

Installation

1. Remove the seat.

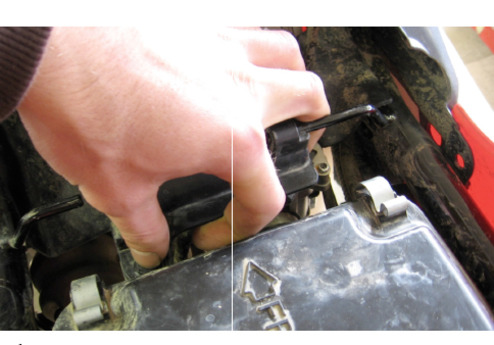

2. Remove the Throttle Body Cover in front of the air box.  (See Figure #1)

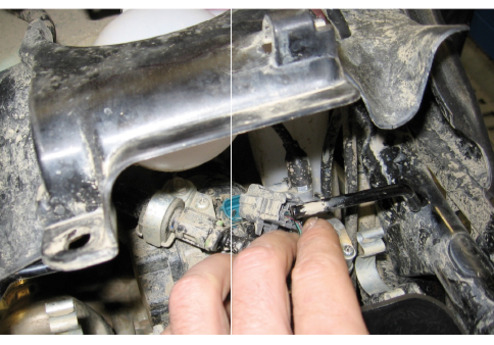

3. Unplug the Gray connector from the fuel injector.  (See Figure #2)

4. Plug the Gray optimizer connector into the fuel injector.  Plug the Black Optimizer Connector into the Gray Injector Harness Connector. (See Figure #3)

5. Run the black ground wire to a good chassis ground or the negative battery post.

6. With the optimizer harness connected and the ground wire hooked to a solid ground source, route and secure the wiring harness using the supplied zip ties, being careful to stay clear of any hot or moving parts.  Where possible, tie to the existing vehicle wiring harness.

7. Use the supplied Velcro material to mount the Optimizer to a cool, dry area, such as inside the air box, or one of the various storage compartments.

Note:  Base tuning for the Optimizer is pre-programmed.  his tuning was determined with our HMF exhaust and air box lid removed.  Varying outside conditions as well as other modifications to the machine may require some fine tuning.  Test drive the machine prior to changing the base settings. Installation and tuning is the responsibility of the end user.  HMF will not be held responsible for property damage caused by improper installation and/or tuning.
