Can Am Outlander 500/650/800/ Slip-On 06-12 Clamp Titan Installation Instructions For Models: Outlander 800 (2006-2011), Outlander 500 (2007-2012), Outlander 650 (2006-2012)
1. Make sure the machine is on level ground and completely cooled down.
2. Loosen the Stock Clamp that holds the Silencer and Head Pipe together.
3. Loosen the Silencer Mounting Bolts.
4. Brace the back of the Silencer with one hand, and take the bolts the rest of the way out.
5. Pull back and twist with until the Silencer is removed.
6. Remove the Stock Gasket off of the Header, you will no longer need it with the HMF Exhaust.

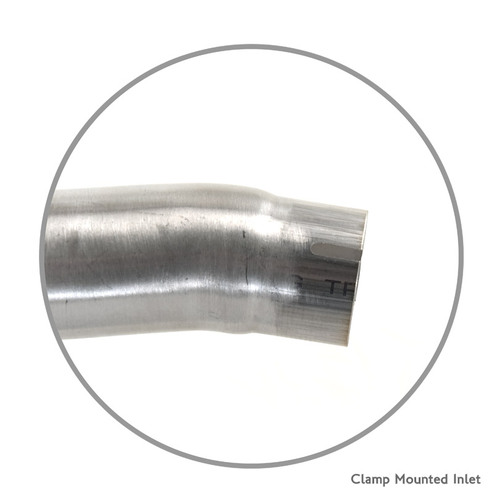

1. Slide the Clamp over the end of the HMF Silencer. Then, slide the Silencer onto the Head Pipe. Some pushing and twisting may be necessary.
2. Mount the Silencer with the supplied hardware and tighten.
3. Tighten the Clamp to secure the Silencer to the Head Pipe.
4. With most applications, tuning is a necessity.(See Figure #1)
