Can Am Maverick Dual Slip-On Titan Series Installation Instructions For Models: Maverick (2013-2018), Maverick MAX (2014-2018), Maverick XDS (2015-2016)
1) Loosen the clamps at the silencer inlet joints.
2) Where applicable, remove the hitch pins from the top silencer mounting brackets.
3) Pull back and twist to remove the original silencers with clamps.
1) Slide the supplied Clamps over the HMF silencer inlets, and install the silencers in the original location.

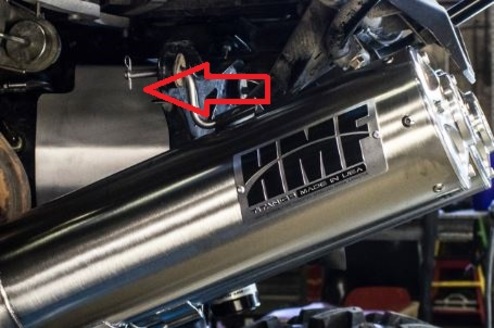

2) Titan and Titan-XL Silencers: Install the supplied hitch pins into the top hangers of each silencer.(See Figure #1)

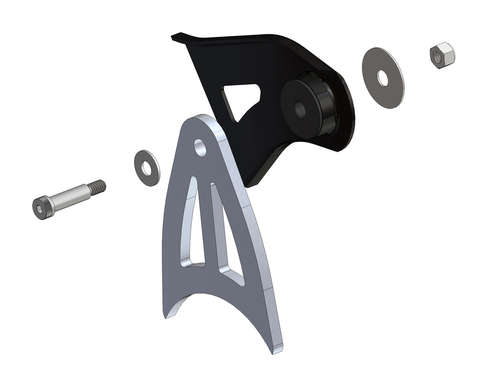

3) For Performance series silencers use the supplied hardware to mount the silencers to the top brackets. Washer positioning is imperative to maintain the integrity of the original rubber mounts. (See Figure #2)
