Can Am DS450 Slip-On Installation Instructions

Removal

1. Make sure the machine is on level ground and completely cooled down.

2. Loosen the Stock Clamp that holds the Silencer and Head Pipe together.

3. Once the clamp has been loosened, loosen the Silencer Mounting Bolts.

4. Brace the back of the Silencer with one hand, and take the bolts the rest of the way out.

5. Pull back and twist until the Silencer is removed.

6. Remove the Stock Gasket off the Head Pipe Outlet, you won’t need it with the HMF Silencer.  Continue to installation.

Installation

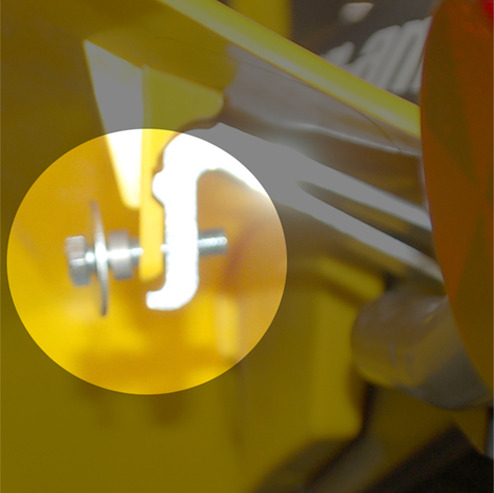

1. Slide the Clamp onto the Silencer End and slide the Silencer onto Header.(See Figure #1)

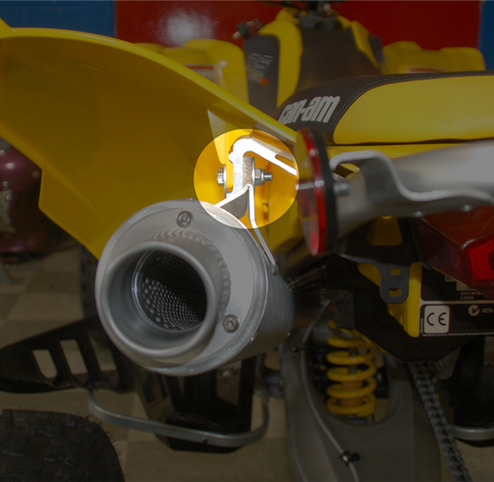

2. Mount the Silencer on the inside of the Bracket. Reuse the Stock Spacer , Washer and supplied bolt and lock nut. (See Figure #2)

3. Use the Stock Torx Bolt and supplied Lock Nut on the Front Mount.
