Arctic Cat / Wildcat XX / Defender LT Front Bumper Installation Instructions

Removal

1. Remove the lower plastic fascia under the headlights and grille.

Installation

NOTE: It is recommended to use medium strength thread locking agent (typically blue) on all bolts.

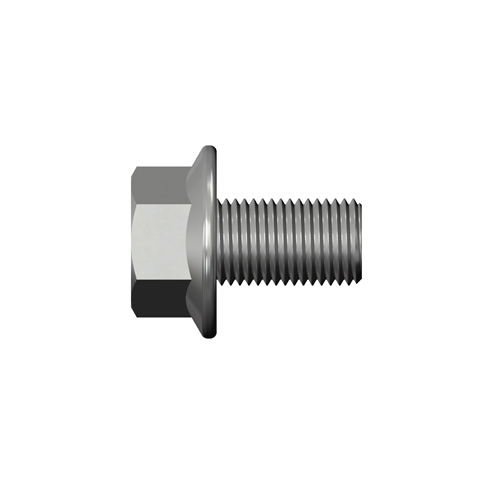

1. Loosely install the provided (4) M12 mounting bolts to mount the bumper to the frame.  The frame of the machine will be threaded at the mounting locations.

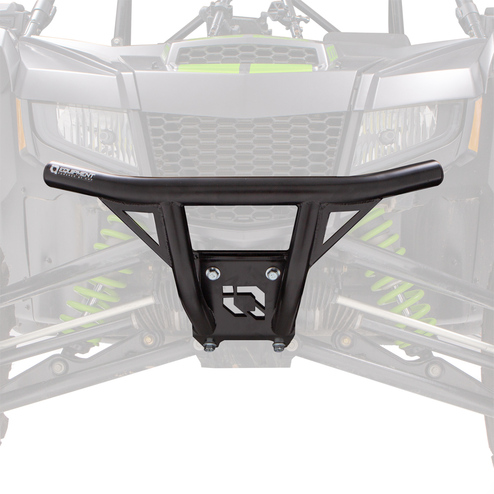

2. Check for clearance and alignment around the bumper.  Tighten all mounting bolts.(See Figure #1)
