For Models: Sportsman® 600 (2003-2004), Sportsman® 700 (2006-2007)
1. Make sure the machine is on level ground and completely cooled down.
2. Loosen the stock Clamp that holds the Silencer and Head Pipe together.
3. Loosen the Silencer Mounting Bolts.
4. Brace the back of the Exhaust with one hand and take the Bolts the rest of the way out.
5. Pull back and twist until the Silencer is removed.
6. Remove the stock Gasket off of the Header. You will no longer need it with the HMF Silencer.

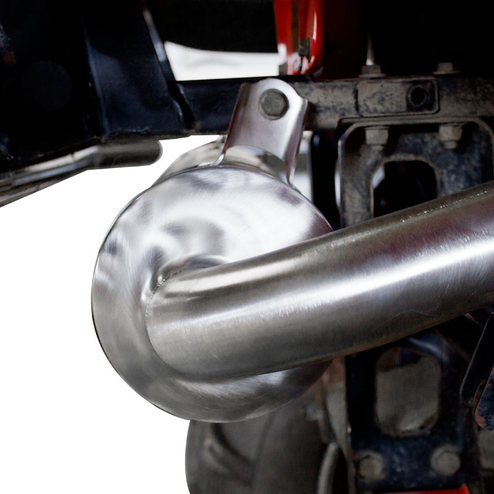

1. Slide the T-Bolt Clamp over the end of the HMF Silencer. Then, slide the Silencer onto the Head Pipe. Some pushing and twisting may be necessary.(See Figure #1)
2. Mount the Silencer with the Stock Bolts or the supplied hardware and tighten.
3. Tighten the T-Bolt Clamp to secure the Silencer to the Head Pipe.(See Figure #2)
4. With most applications, re-jetting/remapping is a necessity.
