For Models: Talon 1000X-4 (2021-2023)
!!! Warning !!! Before working on your machine, make sure it is parked on a level surface with the transmission in park and/or the parking brake engaged.

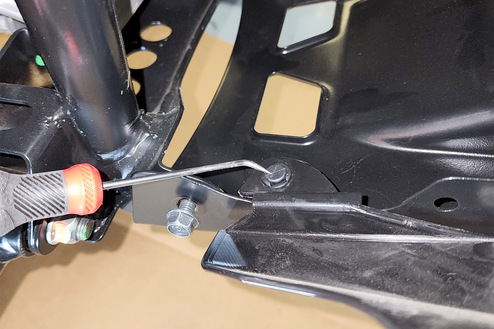

1. Remove the (2) clips on each side holding the front fascia plastics to the factory bumper. Save these clips, they will be used later during installation.(See Figure #1)

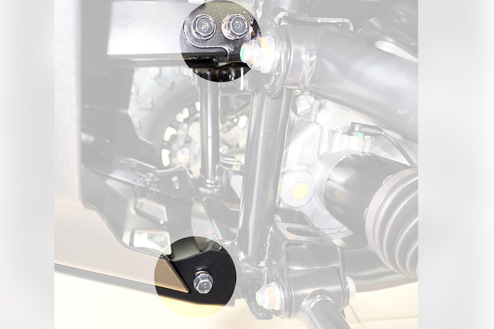

2. Remove the upper (2) factory mounting bolts and (1) lower factory mounting bolt from each side holding the front bumper to the vehicle.(See Figure #2)
3. Carefully remove the factory front bumper.

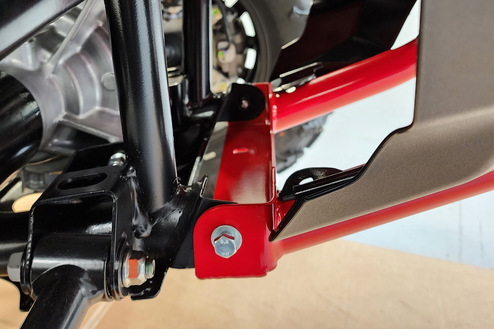

1. Carefully position the HMF HD Front Bumper and secure it to the factory lower mounting points using the provided (2) M8-1.25x20 Hex Bolts and (2) ¼” Flat Washers.(See Figure #3)

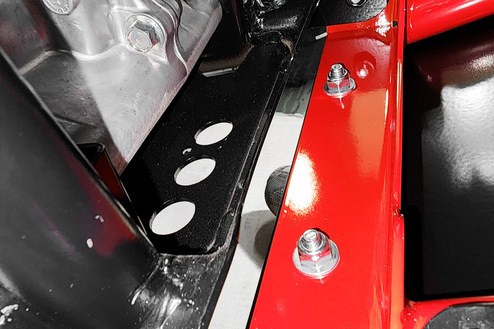

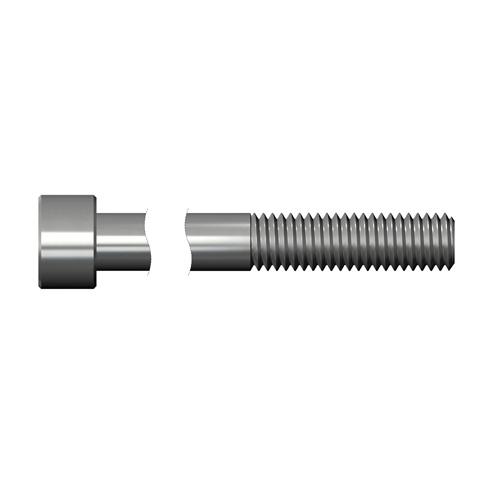

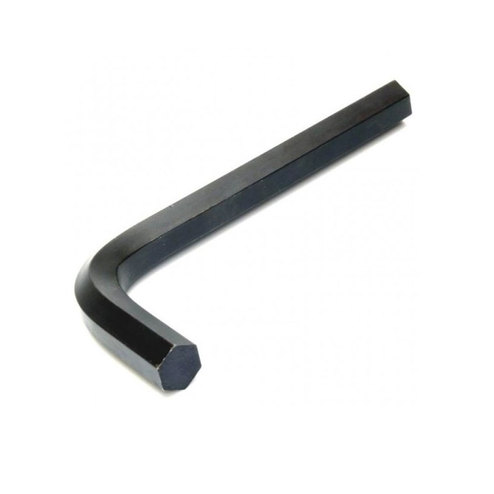

2. Secure the upper mounting points using the provided (4) M8-1.25x65 Allen Head Bolts, (4) 38mm Aluminum Spacers, and (4) ¼” Flat Washers.(See Figure #4)

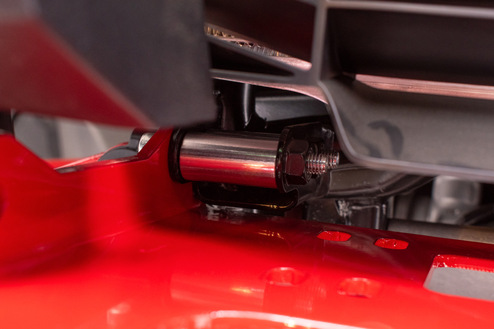

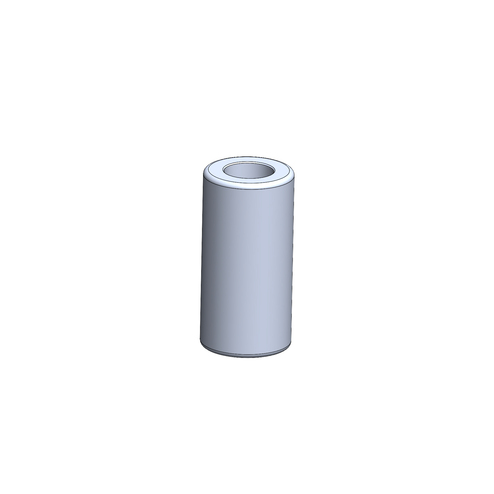

3. The 38mm Aluminum Spacers will go between the factory frame rails as shown below. (See Figure #5)

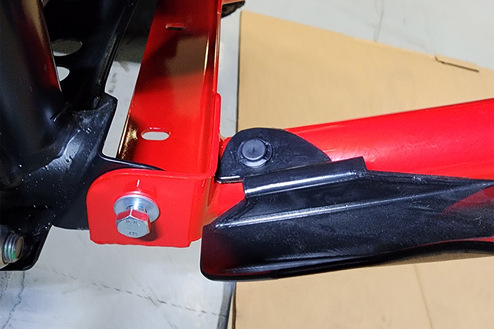

4. Use the original clips to secure the lower fascia mount to the holes on the bumper.(See Figure #6)

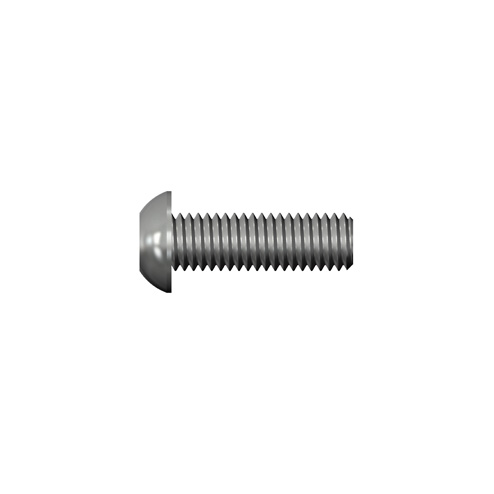

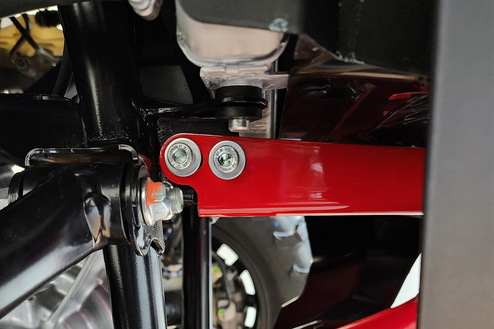

5. Begin securing the provided skidplate at the lower mounting points on the bumper using the provided (2) M8-1.25x25 Buttonhead Bolts, (4) ¼” Flat Washers, and (2) M8-1.25 Nylock Nuts. (See Figure #7)
6. Finish securing the skidplate to the bumper with the provided (2) M8-1.25x25 Buttonhead Bolts, (4) ¼” Flat Washers, and (2) M8-1.25 Nylock Nuts.(See Figure #8)

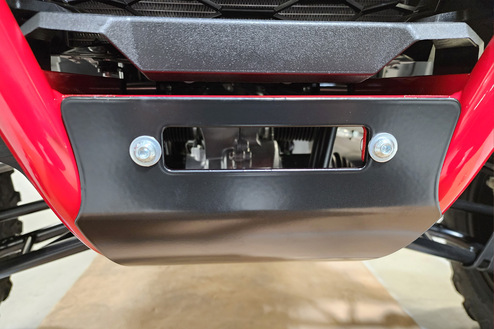

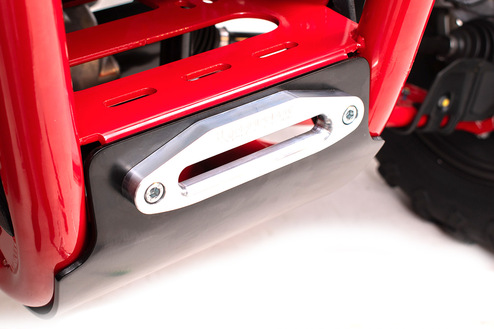

Note: If installing a winch at this time a fairlead must be used with the bumper to prevent damage to the bumper. Use the hardware provided with the fairlead to secure the fairlead to the skidplate and bumper.(See Figure #9)
