For Models: Maverick XDS Turbo (2015-2017)
!!! WARNING !!! Before working on your machine, make sure it is parked on a level surface with the transmission in park and/or the parking brake engaged.
Do not work on any machine with a hot engine or exhaust. Allow time for all parts to cool in order to reduce the risk of burns.
Blackout Exhausts: Take care not to get grease or oils on the exhaust. Cleaning our Blackout exhaust with harsh solvents, abrasives, or pressure washers will remove the coating and is not covered under warranty.
1. Loosen the clamps for the stock mufflers and remove the cotter pins from top mounting hangers.
2. Remove the mufflers.
1. Slide the provided #64 T-Bolt Clamps over the inlets of the HMF silencers.

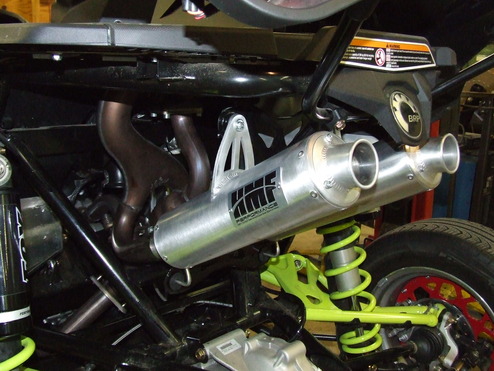

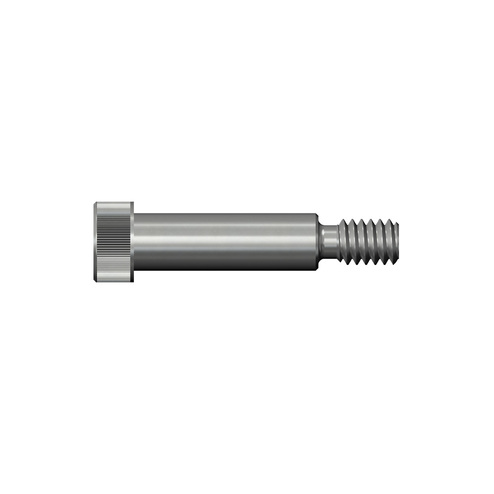

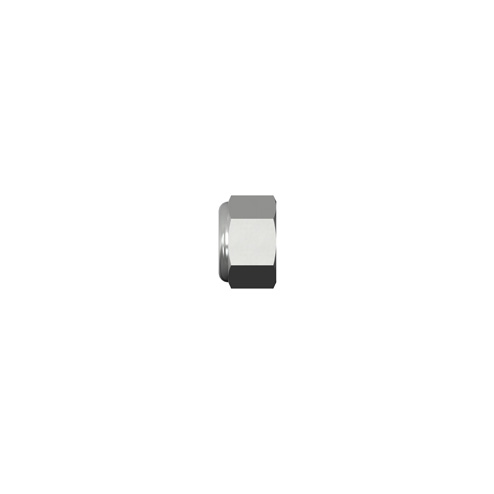

2. Install the left and right side silencers with the (2) 1/4” Nylcos, (2) 5/16” Fender Washers, (2) #62 T-Bolts, (2) 5/16” x 1” Shoulder x 1/4” Bolts, (2) 1/4” Washers.(See Figure #1)
Note: Washer positioning is imperative to maintain the integrity of the original rubber mounts.
3. Check for proper alignment and clearance then tighten the previously installed T-Bolt Clamps.

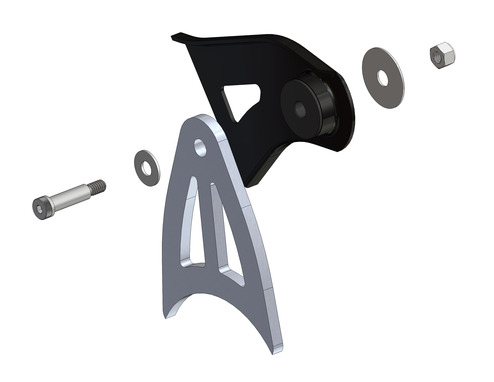

WASHER POSITIONING IS IMPERATIVE(See Figure #2)
Wipe off any fingerprints or markings using a soft cloth and mild detergent such as soap and water or glass cleaner without ammonia. Once the exhaust heat cycles any oils left on the exhaust may permanently imprint.
If you received a stainless steel exhaust without the Blackout coating it is normal for the pipes to change color as they heat cycle.
The HMF Blackout exhaust will smoke and put out an odor for the first full heat cycle as the coating goes through its final curing process. It is recommended to allow this process to happen in a well ventilated area.
All systems will produce a smoke out the end cap after a short initial heat cycle, this is the packing material bedding in and is completely normal.
