HMF Racing Rear Cargo Rack - Can-Am® Maverick X3 MAX Instructions

For Models: Maverick X3 MAX (2017-2022)

Installation

1. Remove the 2 small torx head screws and nyloc nuts from the back of the bed.

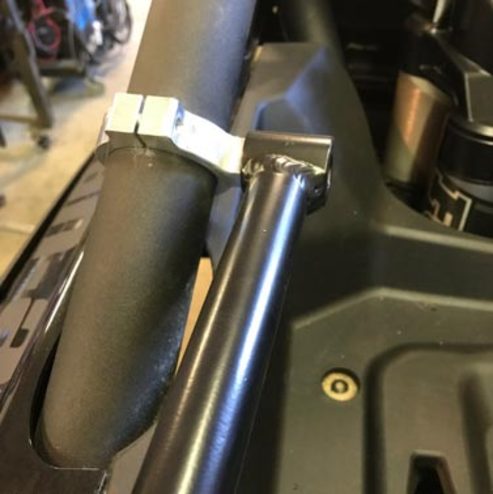

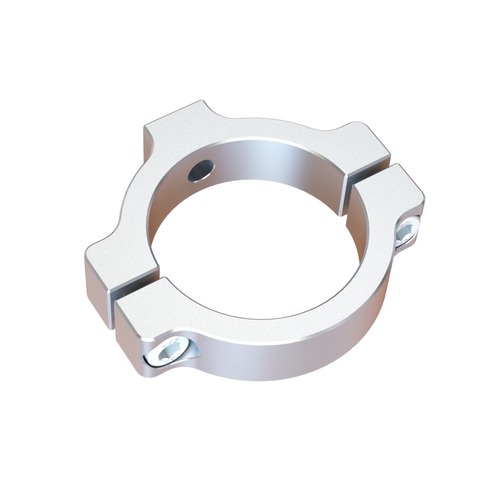

2. Install the 2 clamps on the cage tubes with the threaded boss toward the inside. Leave these lose enough so that they can be adjusted to fit the cargo rack.

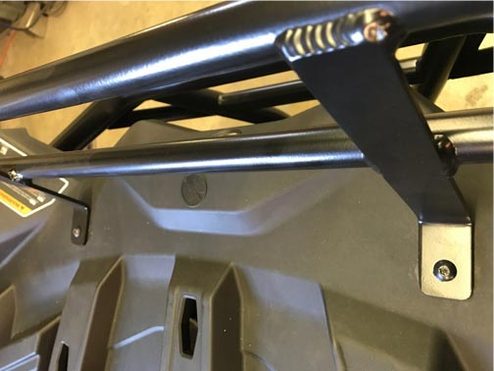

3. Set the cargo rack in the bed and install the original small torx screws and nuts so that they pass through the rear cargo rack mounts and the bed.(See Figure #1)

Rear Cargo Rack - Can-Am® Maverick X3 MAX Instructions - Figure 1

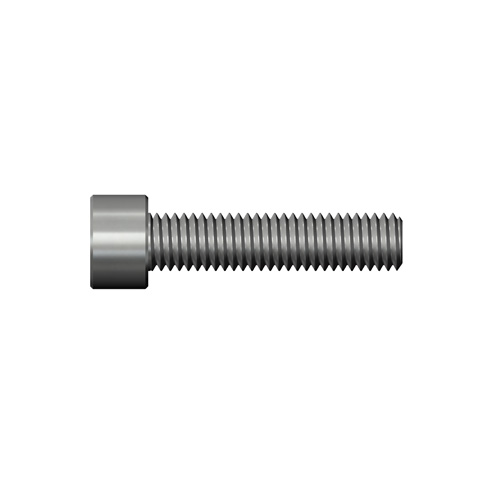

4. Line up the previously installed clamps with the cargo rack and install the supplied allen head bolts.(See Figure #2)

Rear Cargo Rack - Can-Am® Maverick X3 MAX Instructions - Figure 2

5. Tighten the clamp bolts.
