Slip On Exhaust Instructions

For Models: DS90 (2010-2023)

Removal

1. Remove the right side panel to gain access to the clamp that holds the original silencer to the head pipe. Loosen the clamp.

2. Remove the two bolts that hold the silencer to the frame.

3. Pull back and twist to remove the original silencer.

4. If the gasket does not come off with the original silencer, remove it from the head pipe. You will no longer need it.

Installation

1. Assemble the HMF silencer and inlet tube so that the spring tabs line up with one another.

2. Use a spring tool or piece of electrical wire to install the included spring.

3. Slide the included T-bolt clamp over the inlet tube and install the silencer and inlet assembly over the head pipe.

4. Using the supplied bolt, washers, and aluminum spacer, mount the silencer to the frame. NOTE: Use one of the original nyloc nuts here. Tighten the T bolt clamp and silencer mounting bolt.(See Figure #1)

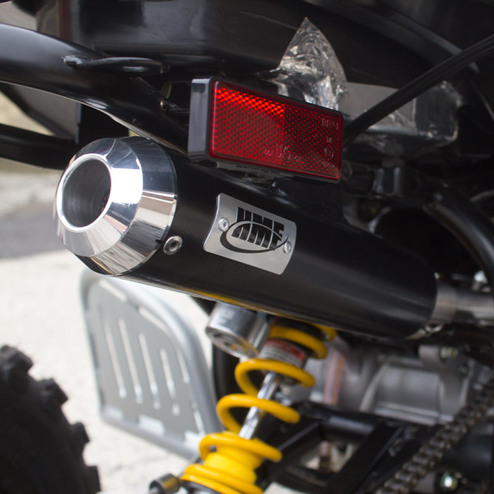

Slip On Exhaust Instructions - Figure 1

5. Inspect all areas around the exhaust for proper alignment and clearance. Adjust as necessary.

6. Install the right side panel.(See Figure #2)

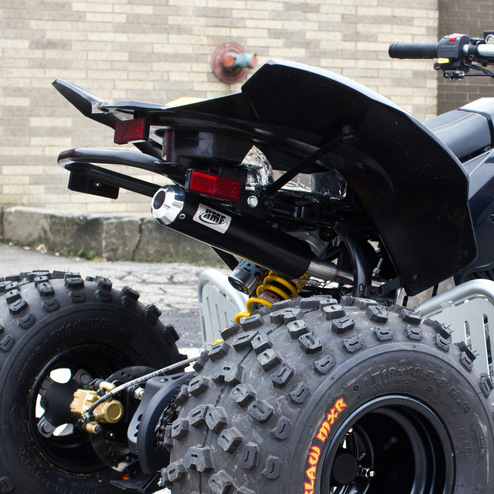

Slip On Exhaust Instructions - Figure 2

Discussion

Tuning

Typically, fuel tuning is not required when installing an HMF Exhaust on this machine. However, other modifications to the machine may require the need for fuel tuning to ensure the machine runs properly, and there is no damage to the exhaust system. See the tuning settings below for possible tuning solutions or Contact Us for more information.
