HMF Racing Rear Bumper, Polaris® Scrambler XP 1000 Instructions

Removal

1. Remove the (4) Bolts holding the Rear Grab Bar bumper.

2. Remove the (2) Nuts on Lower A-Arms.  Keep this hardware, you will use it for the IQ Equipment Bumper installation.

Installation

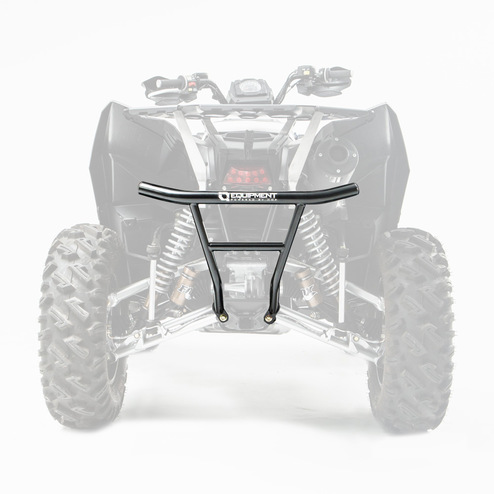

1. Install the Bumper to the Bolts on the Lower A-Arms and Grab Bar Mounting Point.(See Figure #1)

Rear Bumper, Polaris® Scrambler XP 1000 Instructions - Figure 1

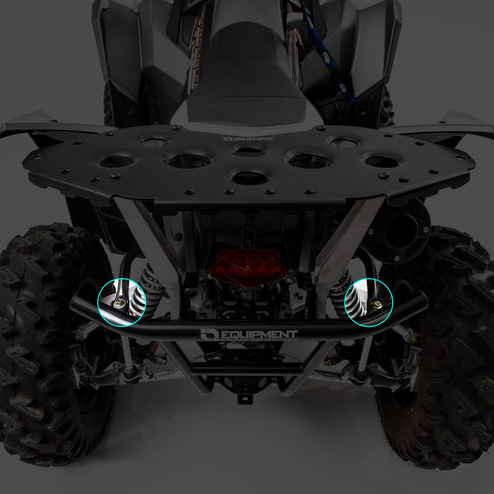

2. Tighten the Nuts on the Lower A-Arms(See Figure #2)

Rear Bumper, Polaris® Scrambler XP 1000 Instructions - Figure 2

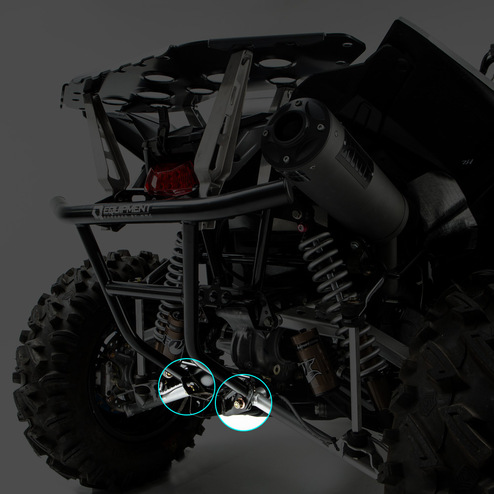

3. Center and Level the bumper and tighten with the (4) Remaining Bolts.(See Figure #3)

Rear Bumper, Polaris® Scrambler XP 1000 Instructions - Figure 3
