HD Front Bumper, Polaris RZR® 800 Instructions Remove the 4 screws and the plastic winch pocket cover from the vehicle.

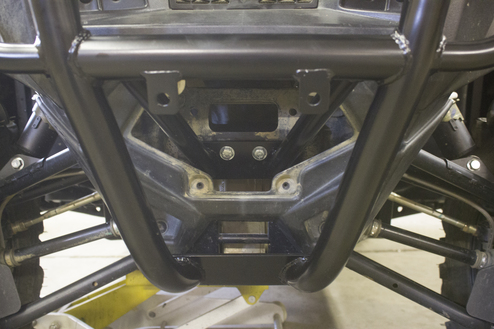

Use the 2 supplied M8 bolts with 4 flat washers and nyloc nuts to attach the bumper top mounting plate to the frame. Do not tighten. (See Figure #1)

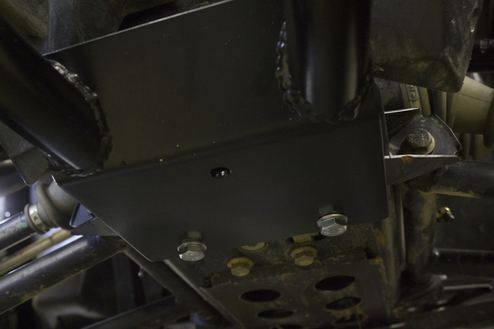

Use the supplied M10 bolts with 4 flat washers and nyloc nuts to attach the lower mounting plate to the bottom of the frame. Do not tighten. (See Figure #2)
Take your time to adjust the bumper position. Once level, tighten the 4 mounting fasteners.

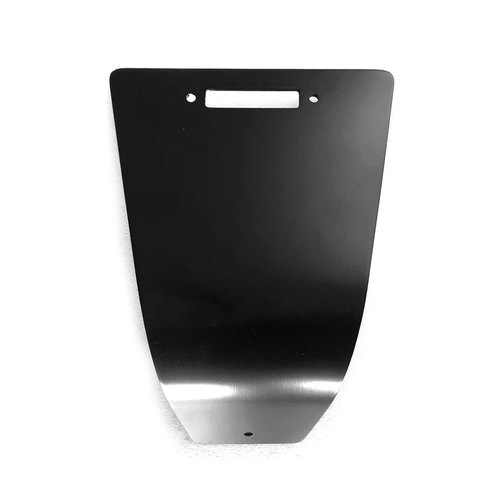

Using the 3 supplied M8 bolts, washers, and nyloc nuts, install the skid plate to the bumper.
Note: If you purchased the IQ synthetic rope fair lead use the supplied M8 socket head bolts to mount the fairlead to the skid plate and bumper.
